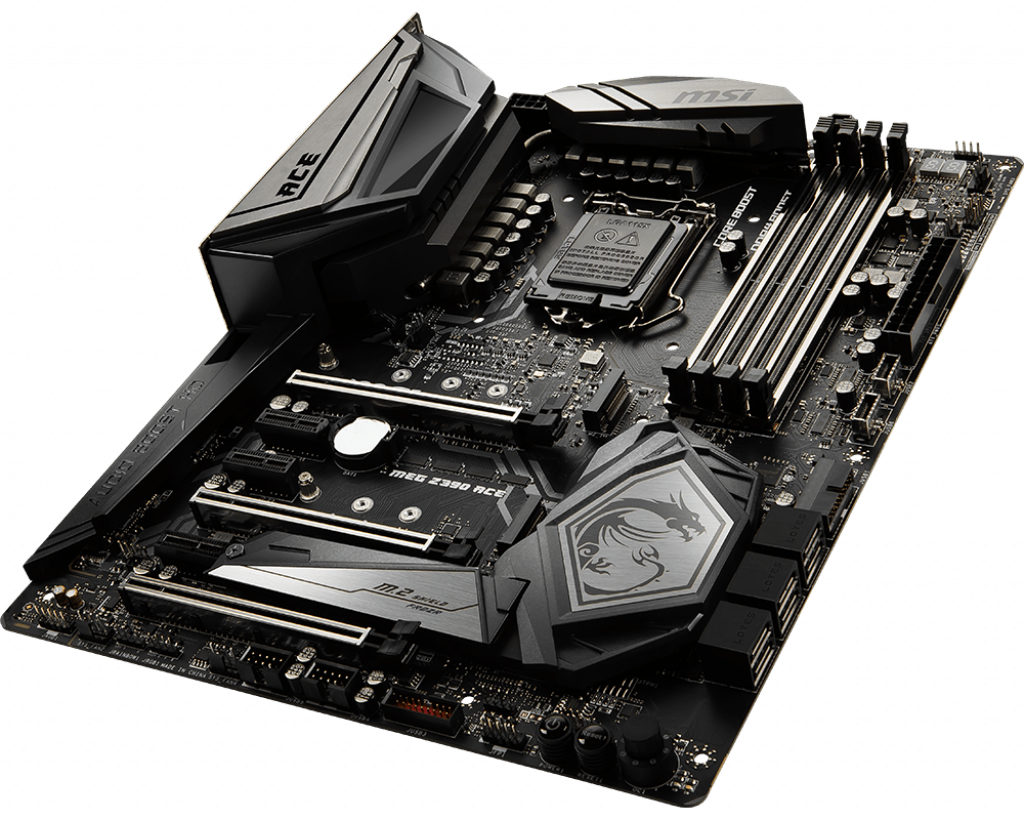

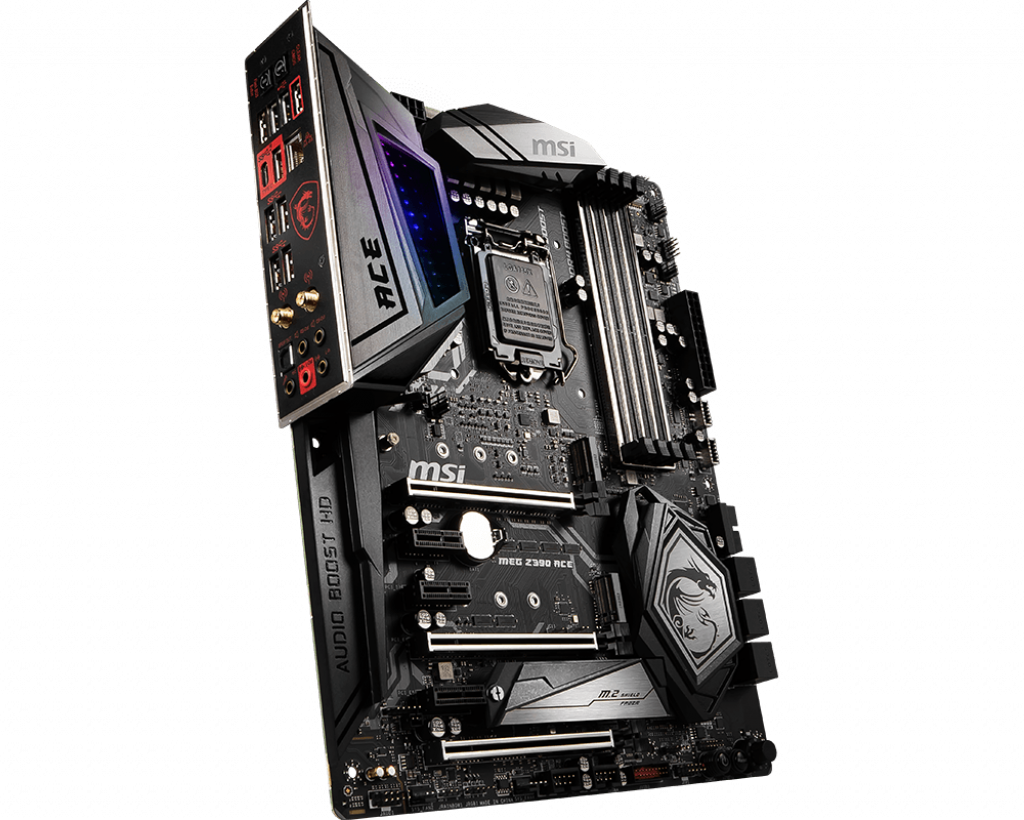

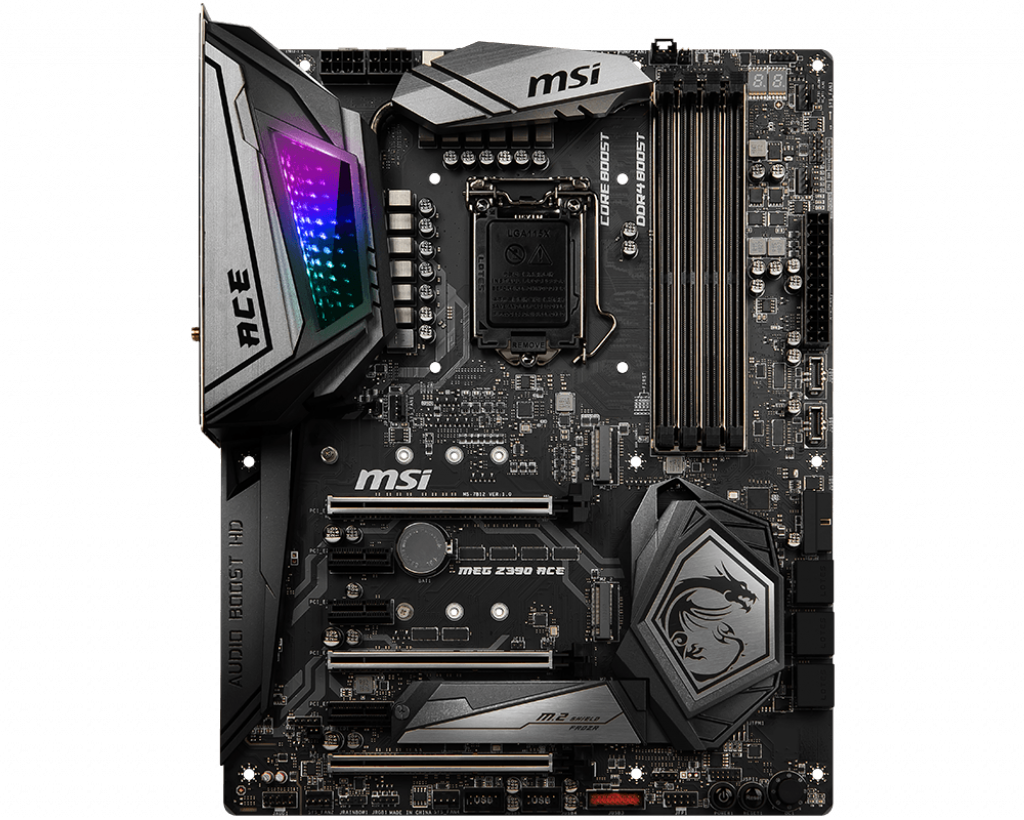

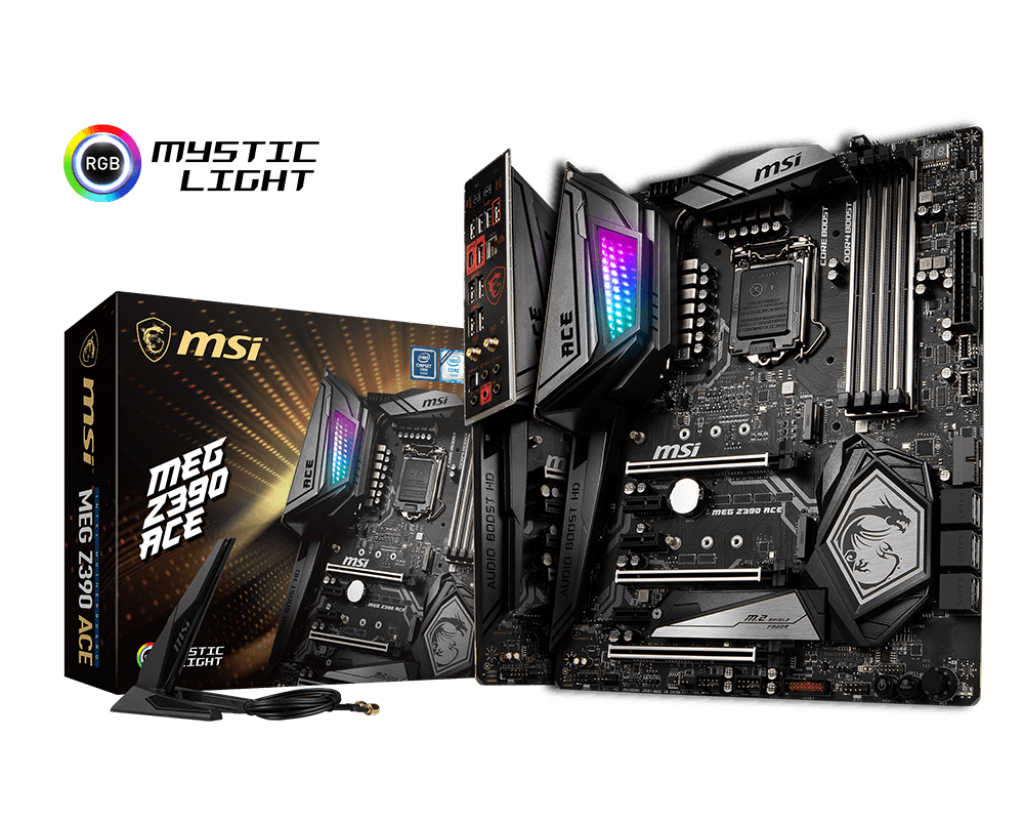

Mainboard MSI MEG Z390 ACE

Giá bán: Liên hệ

Thông tin sản phẩm

- Bảo hành: 36

Mô tả sản phẩm

MSI MEG Z390 ACE - Socket: LGA1151 hỗ trợ CPU Intel thế hệ 8 và 9 - Kích thước: ATX - Khe cắm RAM: 4 khe (Tối đa 64GB DDR4) - Khe cắm mở rộng: 3 x PCIe 3.0 x16, 3 x PCIe 3.0 x1 - Khe cắm ổ cứng: 6 x SATA 6Gb/s, 3 x M.2
THÔNG SỐ KỸ THUẬT

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

MEG Z390 ACE

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

  • 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz

Khe cắm mở rộng

  • 3 x PCIe 3.0 x16 slots
    • Support x16/ x0/ x0, x8/ x8/ x0, x8/ x4/ x4 modes
  • 3 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

  • 6 x SATA 6Gb/s ports
  • 3 x M.2 slot (Key M)

Cổng kết nối (Internal)

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 6 x SATA 6Gb/s connectors
  • 3 x M.2 slots
  • 2 x USB 3.1 Gen2 Type-C ports
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 5 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 2 x 4-pin RGB LED connectors
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 3-pin CORSAIR LED connector

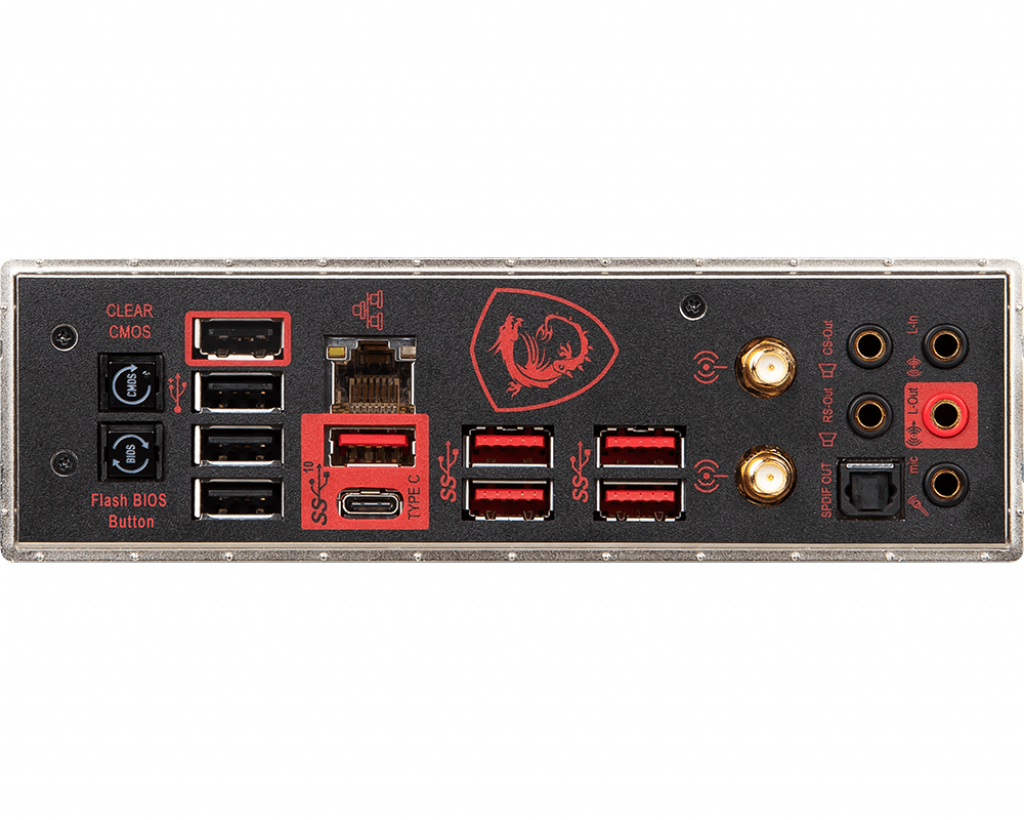

Cổng kết nối (Back Panel)

  • Clear CMOS Button
  • USB 2.0 Ports
  • Killer™ E2500 Gigabit LAN
  • Wi-Fi /Bluetooth Antenna Connectors
  • HD Audio Connectors
  • BIOS FLASHBACK+ Button
  • USB 3.1 Gen2 Ports Type A+C
  • USB 3.1 Gen2 Ports
  • USB 3.1 Gen2 Ports
  • Optical S/PDIF-Out

LAN / Wireless

  • 1 x KillerTM E2500 Gigabit LAN controller

Kích cỡ

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
