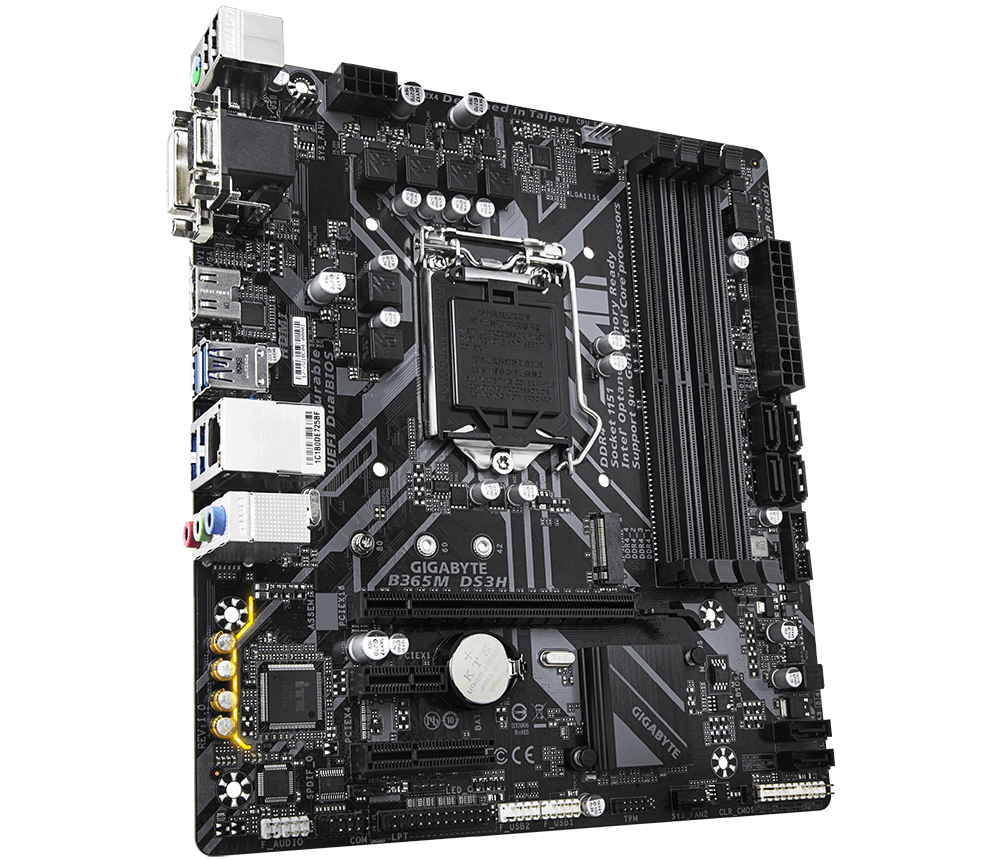

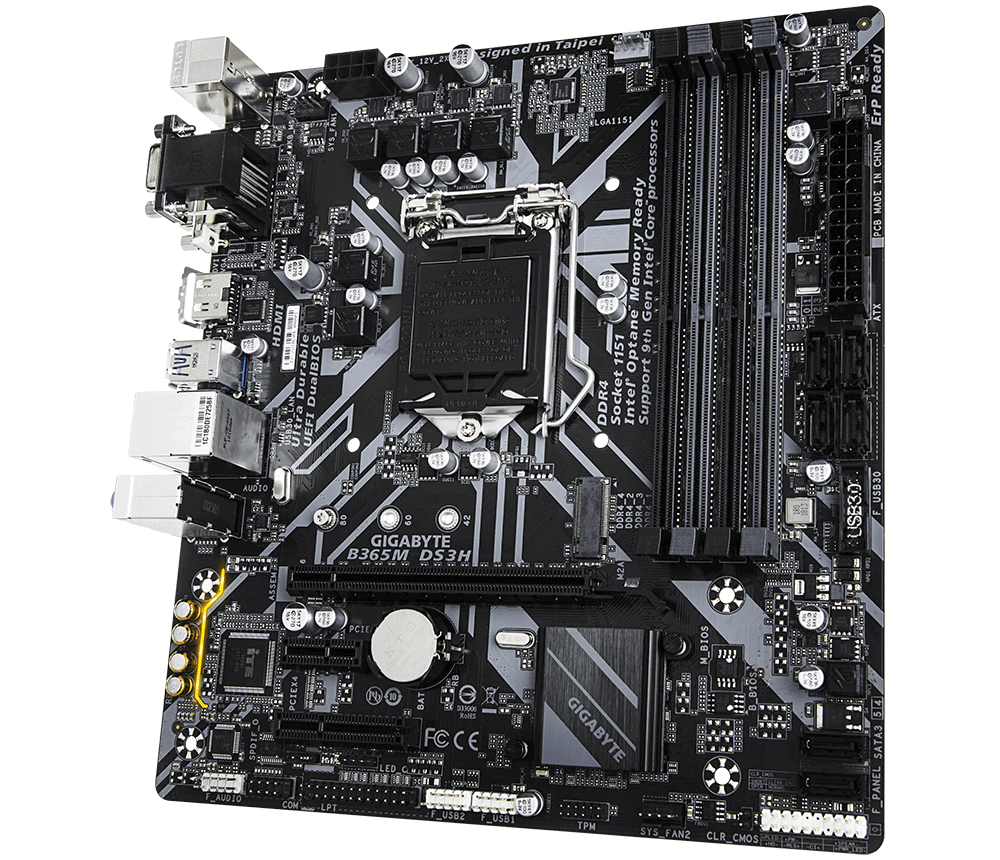

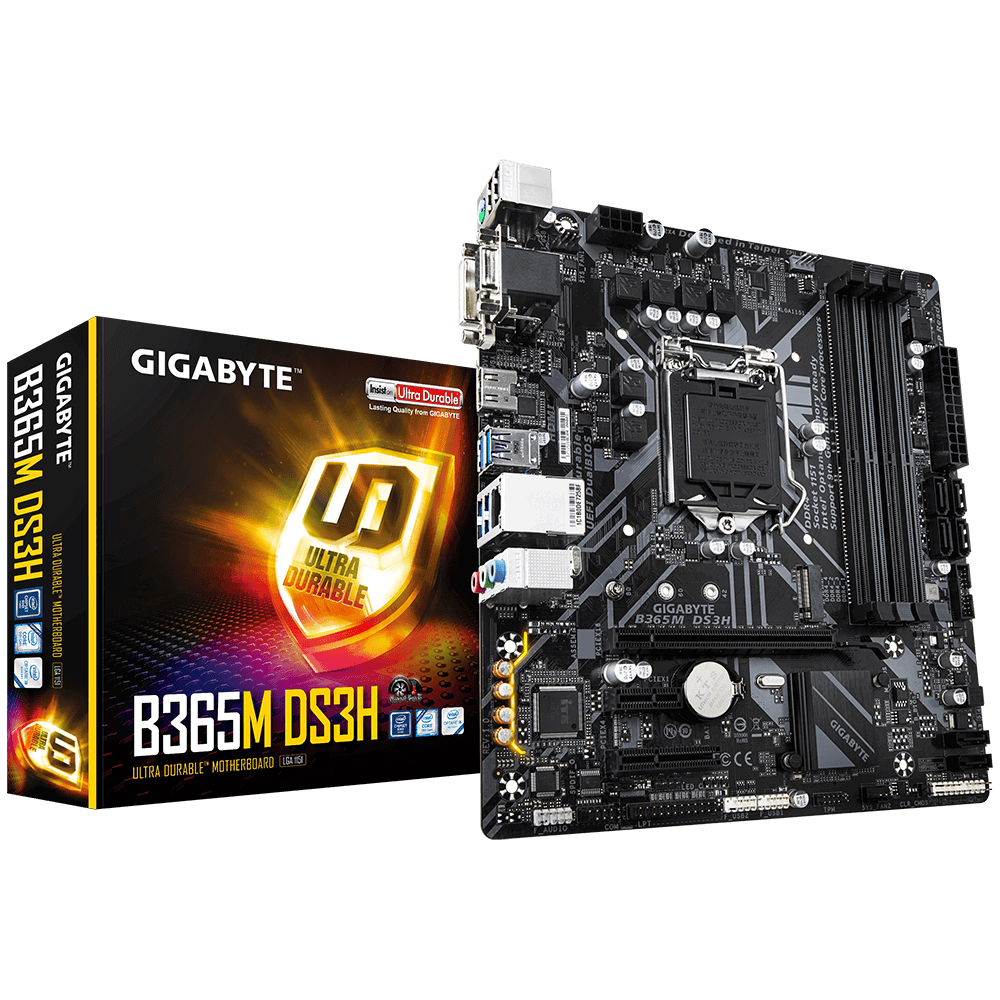

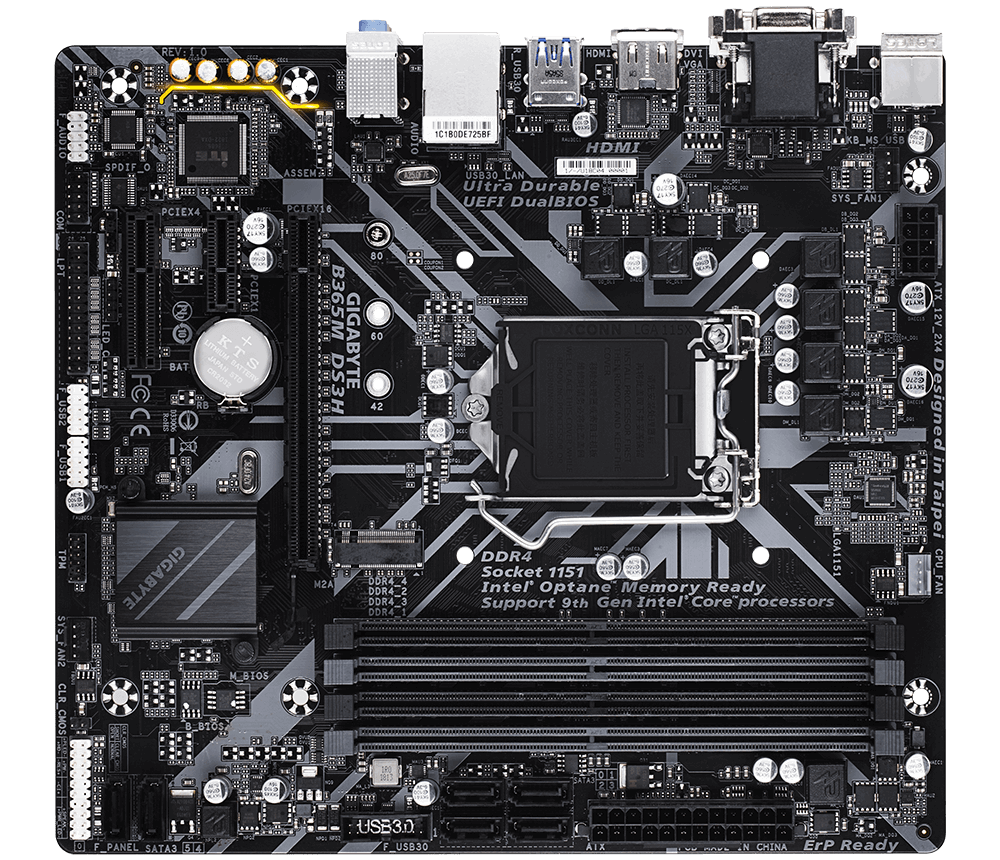

Mainboard Gigabyte B365M-DS3H

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	B365M-DS3H
CPU hỗ trợ	Intel
Chipset	B365
RAM hỗ trợ	4 x DDR4 DIMM slots, support up to 64GB DDR4 2666/2400/2133 MHz memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 1 x PCI Express x4 slot 1 x PCI Express x1 slot
Ổ cứng hỗ trợ	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® GbE LAN chip (10/100/1000 Mbit)
Kích cỡ	Micro ATX Form Factor 22.6cm x 20.5cm
