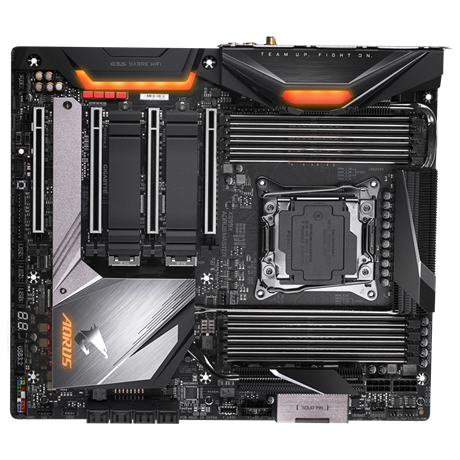

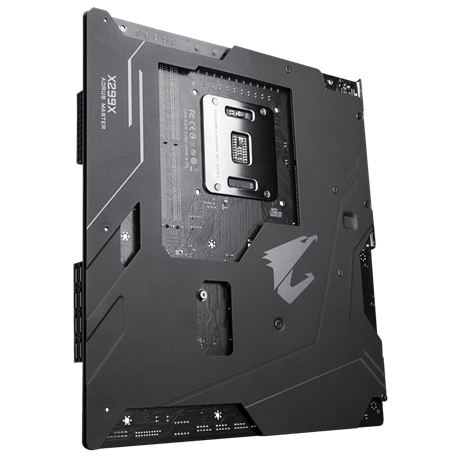

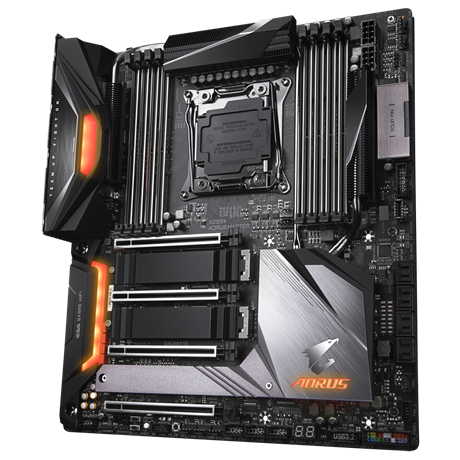

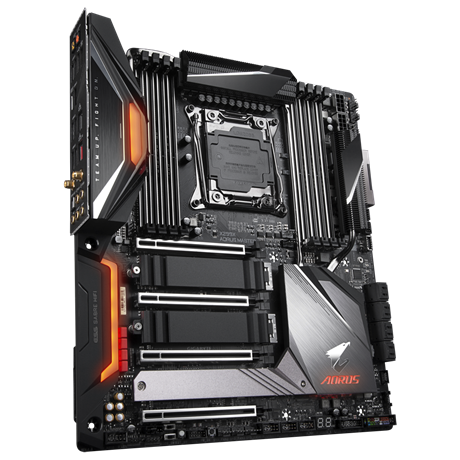

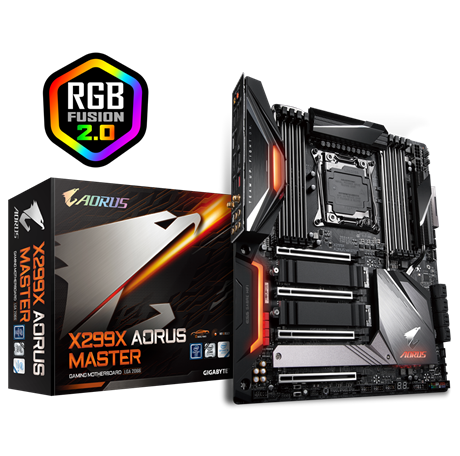

Mainboard GIGABYTE X299X AORUS MASTER

Tính năng
Bình luận

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	X299X AORUS MASTER
CPU hỗ trợ	Intel
Chipset	X299
RAM hỗ trợ	8 x DDR4 DIMM tối đa 256 GB , 2933/2666/2400/2133 MHz memory modules
Khe cắm mở rộng	Intel^® Core™ X series 48-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) Intel^® Core™ X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) Intel^® Core™ X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x Intel^® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 3 x USB 2.0/1.1 headers 1 x noise detection header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches
Cổng kết nối (Back Panel)	1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 6 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks
LAN / Wireless	1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel^® GbE LAN chip (10/100/1000 Mbit) (LAN2)
Kích cỡ	E-ATX Form Factor; 30.5cm x 26.9cm
