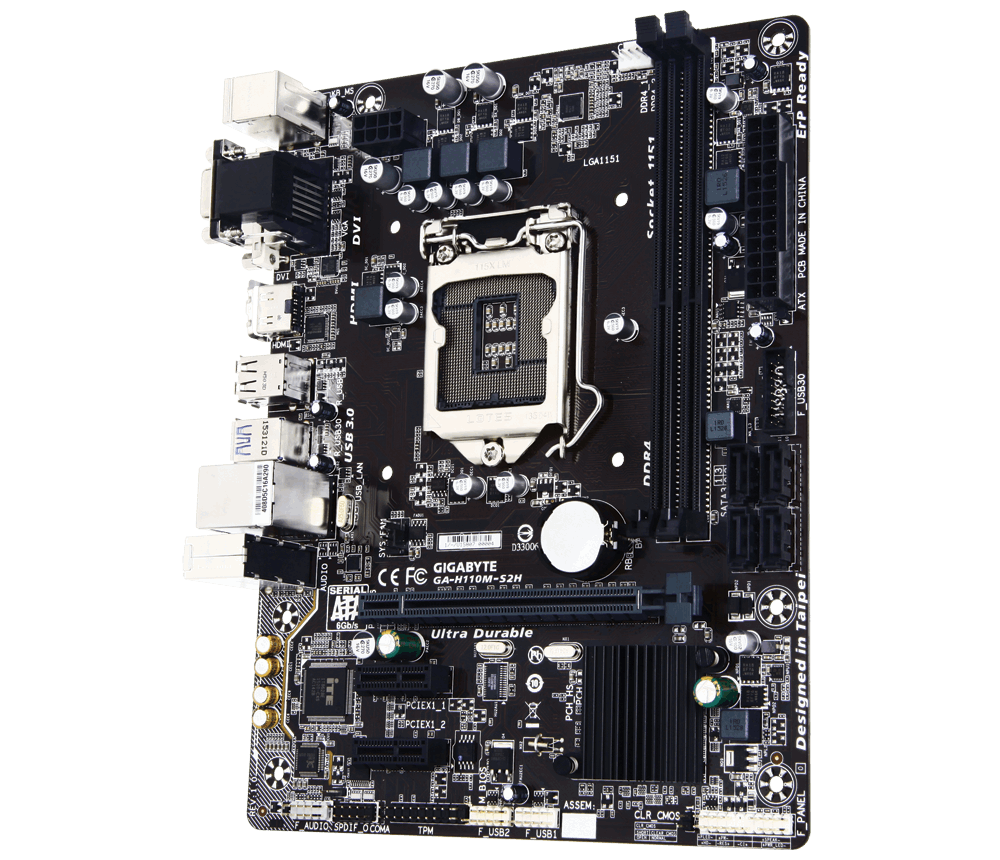

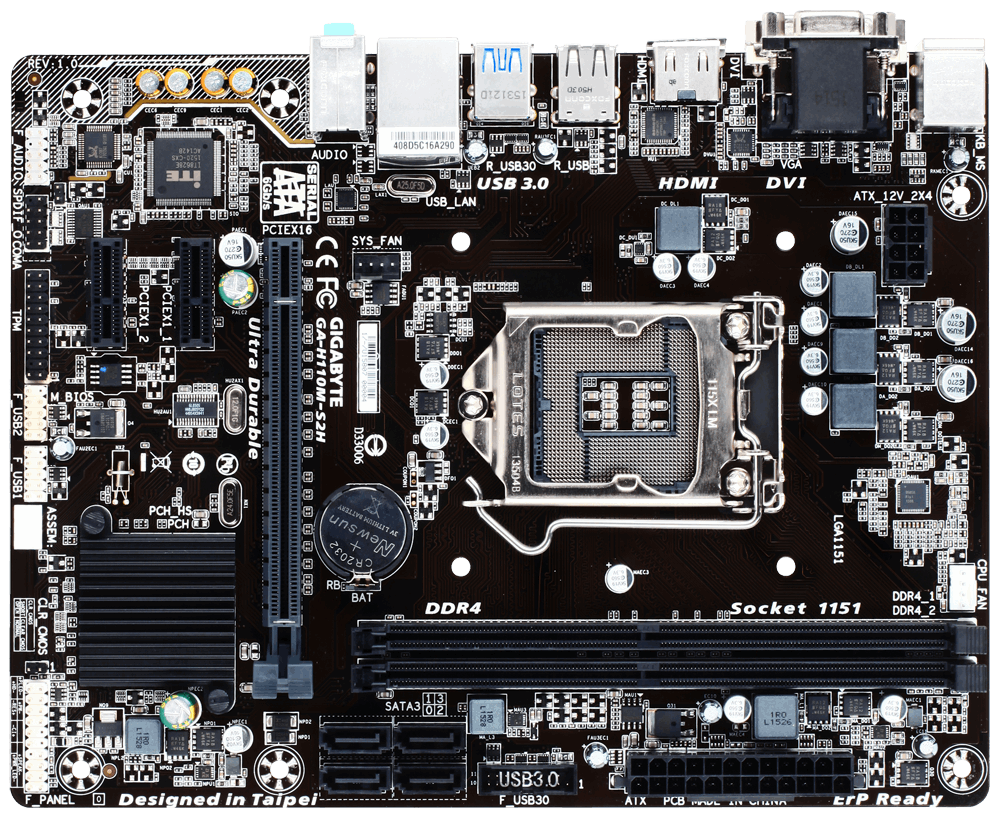

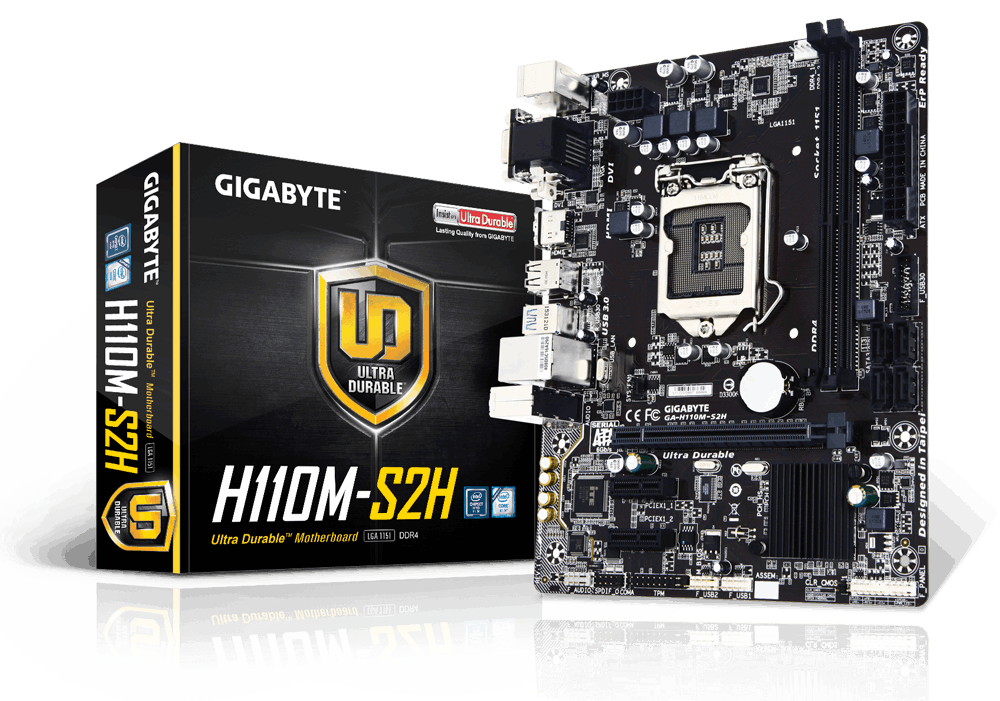

Mainboard GIGABYTE H110M-S2H

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	H110M-S2H
CPU hỗ trợ	Intel
Chipset	H110M
RAM hỗ trợ	2 x DDR4 memory slots, support up to 32GB DDR4
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16), 2 x PCI Express x1 slots
Ổ cứng hỗ trợ	4 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0 (USB 3.1 Gen 1)/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.0 (USB 3.1 Gen 1)/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
LAN / Wireless	Realtek^® GbE LAN chip (10/100/1000 Mbit)
Kích cỡ	Micro ATX Form Factor; 22.6cm x 17.4cm
