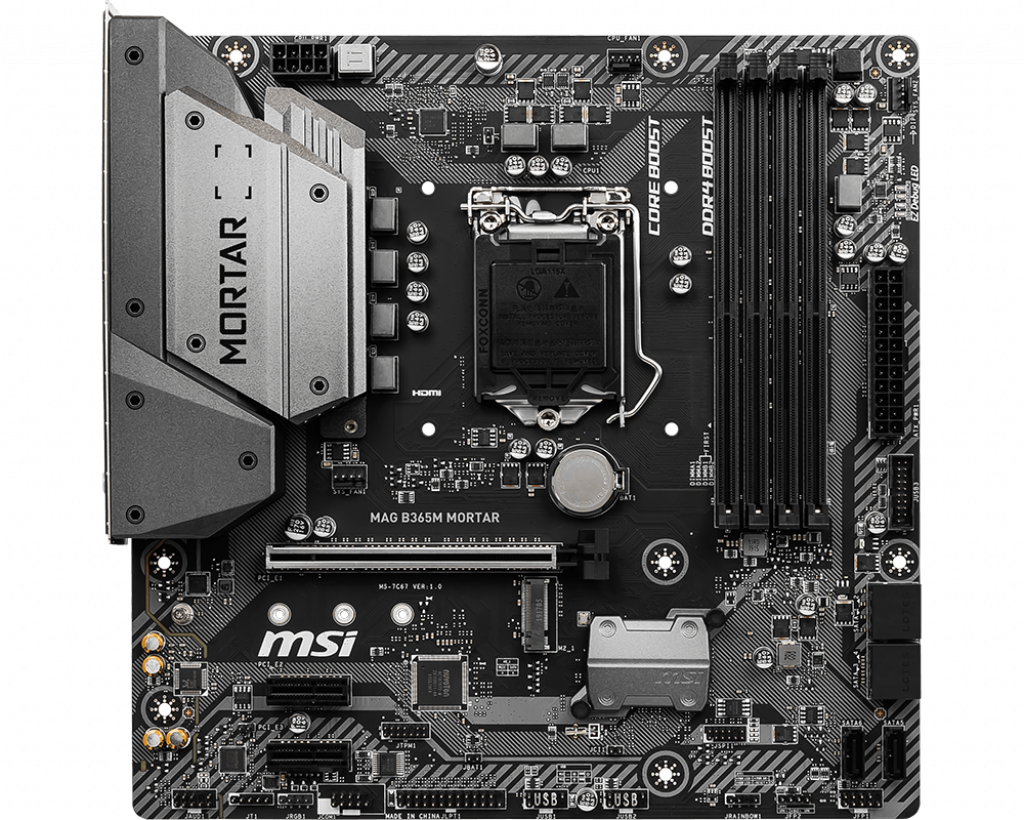

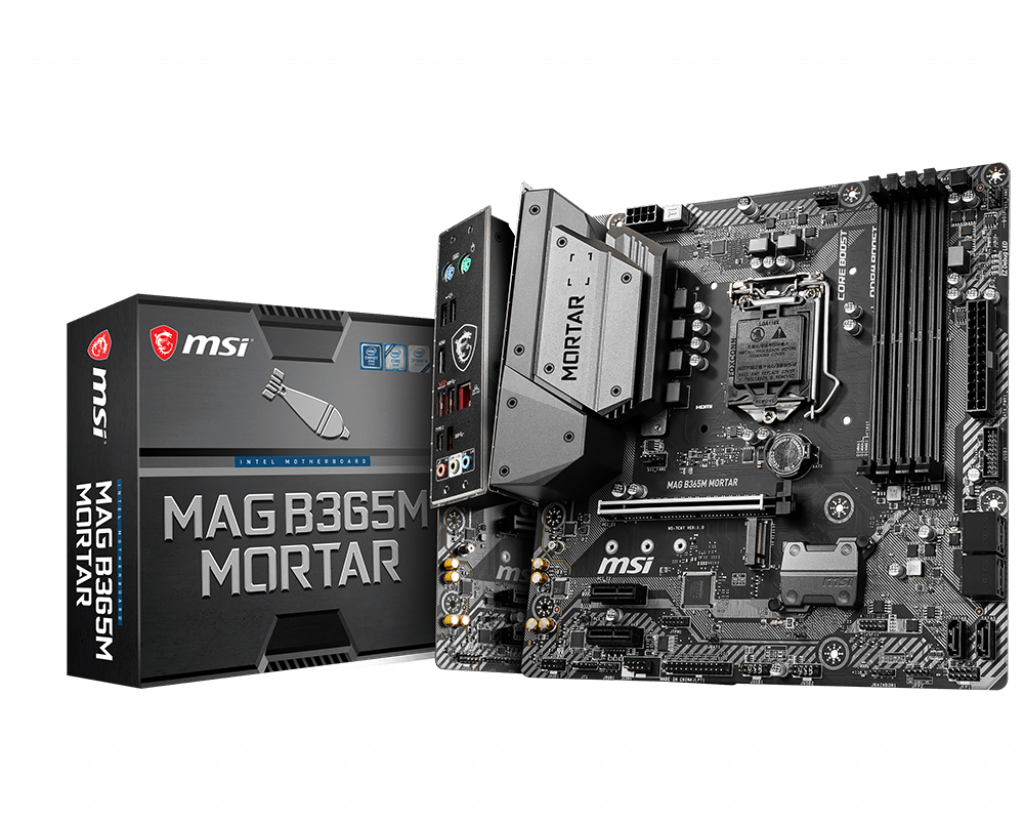

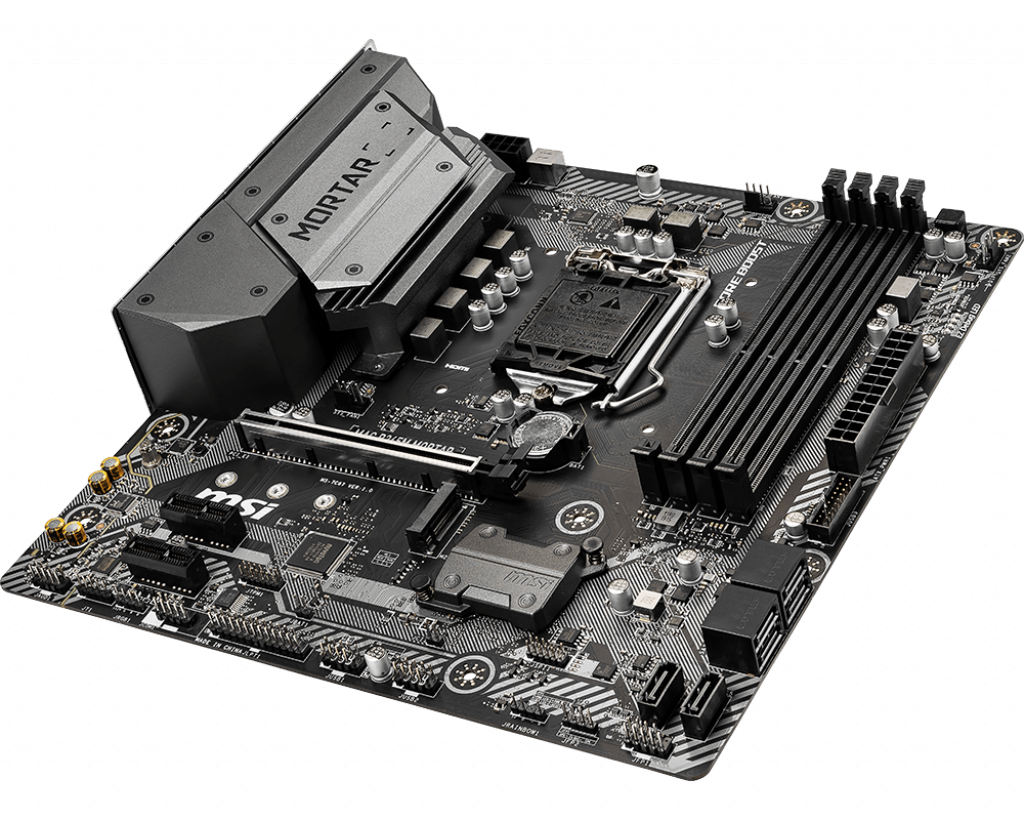

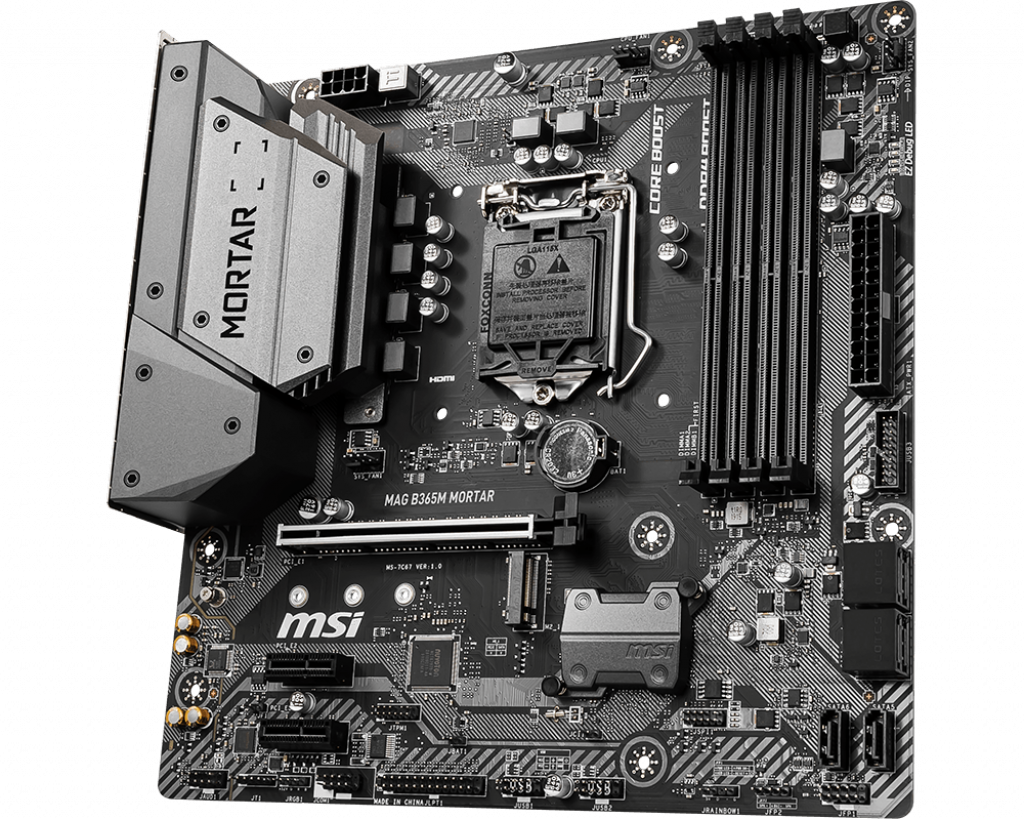

Mainboard MSI B365M Mortar

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	B365M Mortar
CPU hỗ trợ	Intel
Chipset	B365
RAM hỗ trợ	4 x DDR4 memory slots, support up to 64GB, Supports DDR4 2666/ 2400/ 2133 MHz
Khe cắm mở rộng	1 x PCIe 3.0 x16 slot 2 x PCIe 3.0 x1 slots
Ổ cứng hỗ trợ	6 x SATA 6Gb/s ports¹ 1 x M.2 slots (Key M)
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x 3-pin RAINBOW LED connector 1 x 4-pin RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

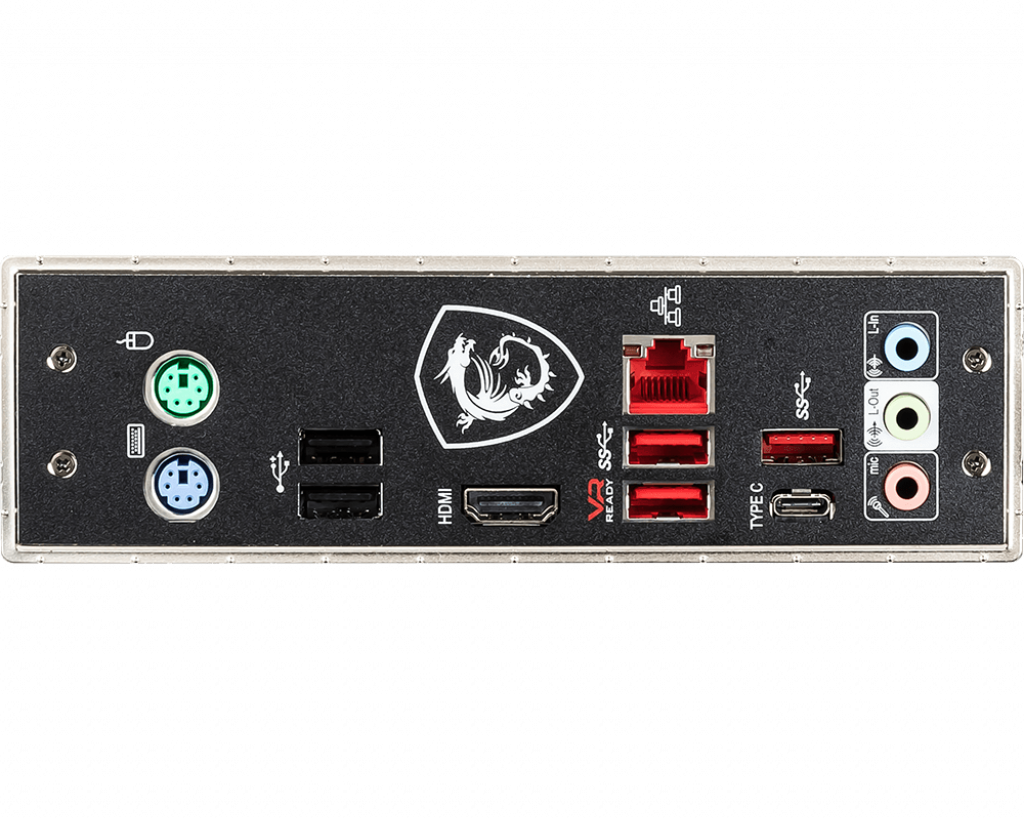

Cổng kết nối (Back Panel)	Mouse Port Intel GAMING LAN HD Audio Connectors Keyboard Port USB 2.0 ports HDMI Port USB 3.1 Gen1 Type-A ports USB 3.1 Gen1 Type-A+C ports
LAN / Wireless	1 x Intel^® I219-V Gigabit LAN controller
Kích cỡ	9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) Micro-ATX Form Factor
