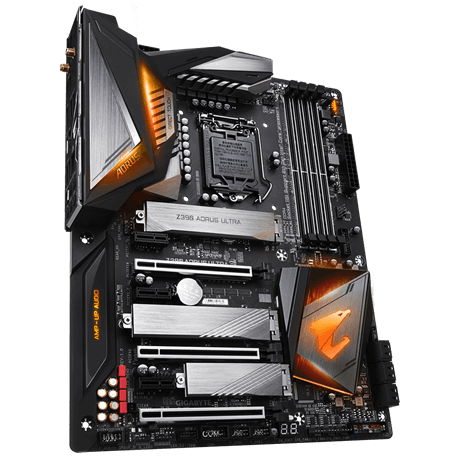

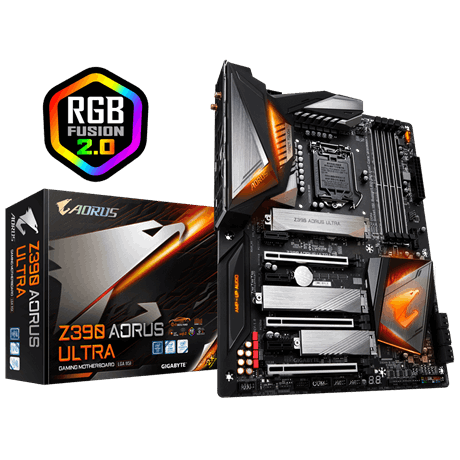

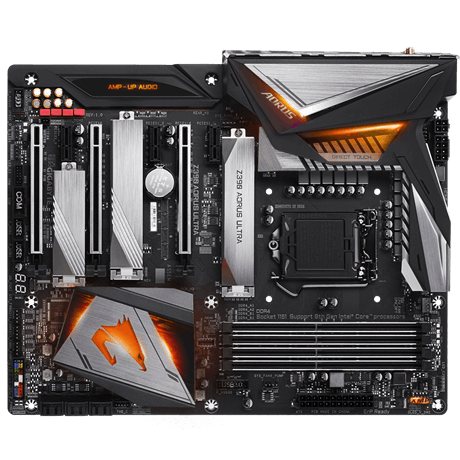

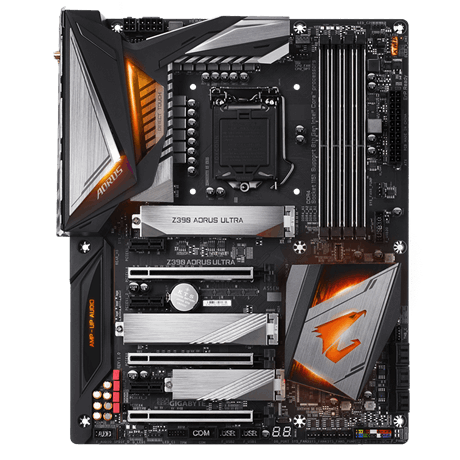

Mainboard GIGABYTE Z390 AORUS ULTRA

Giá bán: Liên hệ

Thông tin sản phẩm

- Bảo hành: 36

Mô tả sản phẩm

GIGABYTE Z390 AORUS ULTRA - Socket: LGA1151 hỗ trợ CPU intel thế hệ 8 và 9 - Kích thước: ATX - Khe cắm RAM: 4 khe (Tối đa 64GB) - Khe cắm mở rộng: 3x PCIe 3.0 x16, 3x PCIe 3.0 x1 - Khe cắm ổ cứng: 6 x SATA 6Gb/s, 3x M.2 Socket 3

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

Z390 AORUS ULTRA

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

4 x DIMM, Max. 64GB, DDR4

4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/

3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

1 x PCI Express x16 slot, running at x8 (PCIEX8)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

3 x PCI Express x1 slots

1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.

Intel® Optane™ Memory Ready

Cổng kết nối (Internal)

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x digital LED strip headers
  9. 2 x digital LED strip power select jumpers
  10. 2 x RGB LED strip headers
  11. 6 x SATA 6Gb/s connectors
  12. 3 x M.2 Socket 3 connectors
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x S/PDIF Out header
  16. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  17. 1 x USB 3.1 Gen 1 header
  18. 2 x USB 2.0/1.1 headers
  19. 1 x Thunderbolt™ add-in card connector
  20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  21. 1 x serial port header
  22. 1 x Clear CMOS jumper
  23. 2 x temperature sensor headers

Cổng kết nối (Back Panel)

  1. 1 x HDMI port
  2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  3. 3 x USB 3.1 Gen 2 Type-A ports (red)
  4. 2 x USB 3.1 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 2 x SMA antenna connectors (2T2R)
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks

LAN / Wireless

  1. Intel® GbE LAN chip (10/100/1000 Mbit)
  2. Intel® CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
