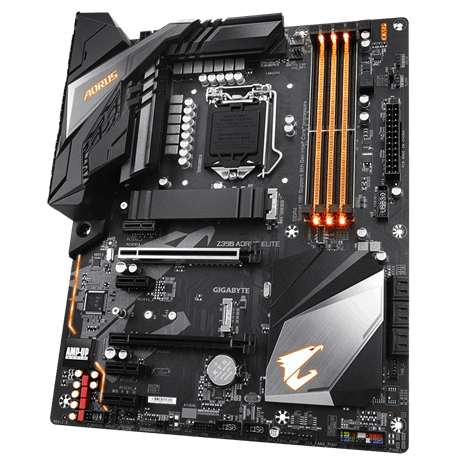

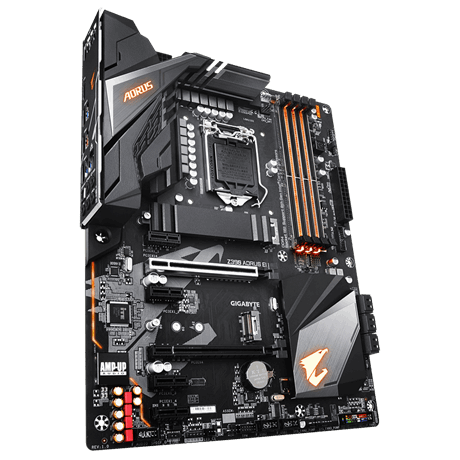

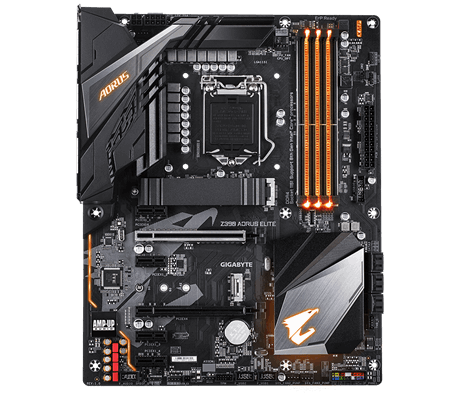

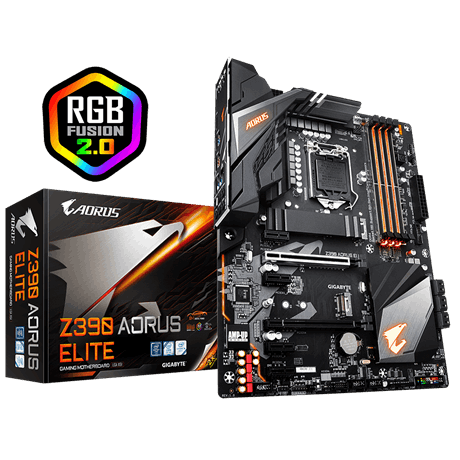

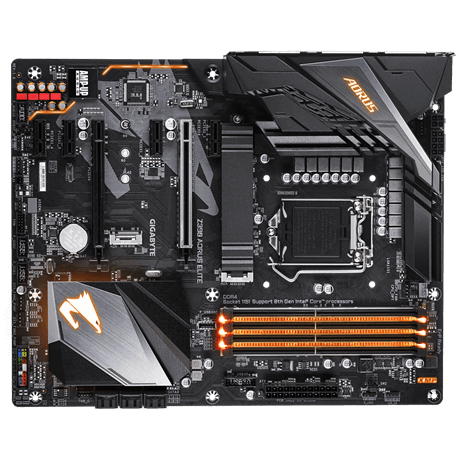

Mainboard GIGABYTE Z390 AORUS ELITE

Giá bán: Liên hệ

Thông tin sản phẩm

- Bảo hành: 36

Mô tả sản phẩm

GIGABYTE Z390 AORUS ELITE - Socket: LGA1151 hỗ trợ CPU intel thế hệ 8 và 9 - Kích thước: ATX - Khe cắm RAM: 4 khe (Tối đa 64GB) - Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, 4 x PCI Express x1 slots - Khe cắm ổ cứng: 2 x M.2, 6 x SATA,

Mua ngay Thêm vào giỏ hàng

Tính năng
Bình luận

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z390 AORUS ELITE

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 64 G DDR4 2666 / 2400 / 2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
4 x PCI Express x1 slots

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel^® Hybrid SSD) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

Intel^® GbE LAN chip (10/100/1000 Mbit)

Kích cỡ

ATX Form Factor
30.5cm x 24.4cm
