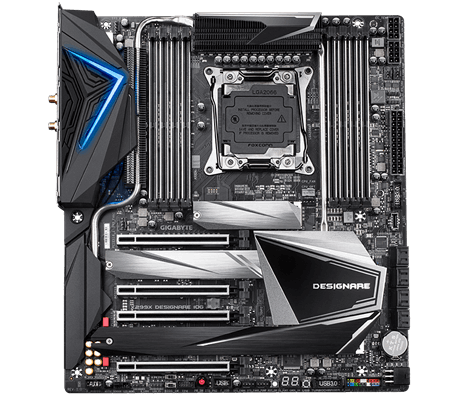

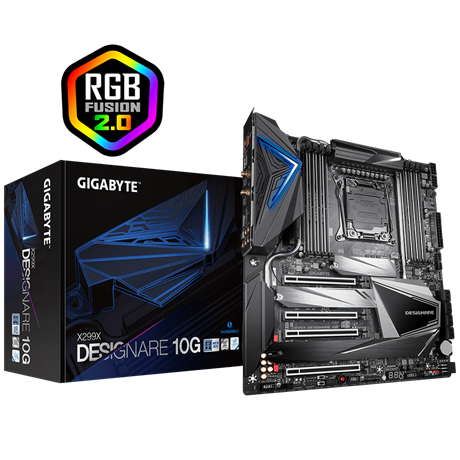

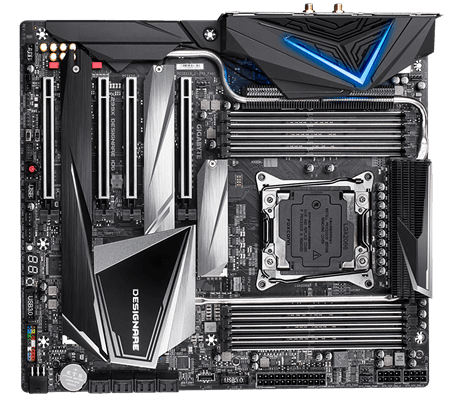

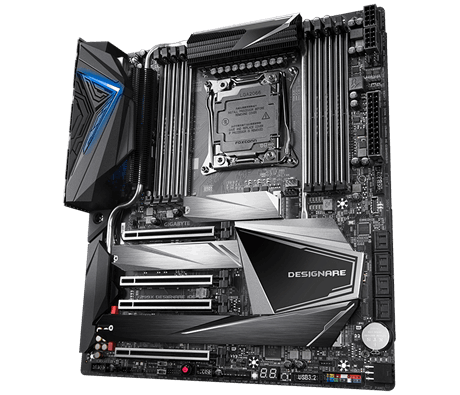

Mainboard GIGABYTE X299X DESIGNARE 10G

Tính năng
Bình luận

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	X299X DESIGNARE 10G
CPU hỗ trợ	Intel
Chipset	X299
RAM hỗ trợ	Intel^® Core™ X series 48-lane processors: 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules Intel^® Core™ X series 44-lane/28-lane processors: 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules
Khe cắm mở rộng	Intel^® Core™ X series 48-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) Intel^® Core™ X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_1) Intel^® Core™ X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q) 6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x VGA_PW power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x Intel^® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x noise detection header 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers 2 x BIOS switches
Cổng kết nối (Back Panel)	2 x DisplayPort In ports 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support) 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
LAN / Wireless	Intel^® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Kích cỡ	E-ATX Form Factor; 30.5cm x 27.5cm
