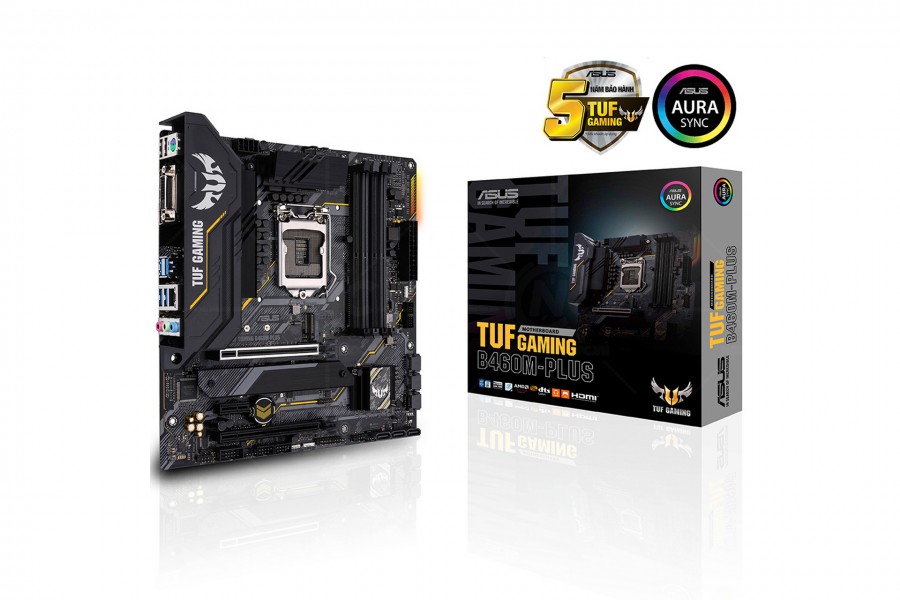

Mainboard ASUS TUF GAMING B460M-PLUS

Tính năng
Bình luận

THÔNG SỐ KỸ THUẬT

Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	ASUS
Model	TUF GAMING B460M-PLUS
CPU hỗ trợ	Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® B460
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Hỗ trợ Intel® Extreme Memory Profile (XMP) OptiMem
Đồ họa	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types.
Hỗ trợ Multi-GPU	Hỗ trợ AMD 2-Way CrossFireX Technology
Khe cắm mở rộng	Intel® 10th Gen Processors 1 x PCIe 3.0 x16 Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) ¹ 3 x PCIe 3.0 x1 ²
Ổ cứng hỗ trợ	Hỗ trợ 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*³ 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready
LAN	Intel® I219-V 1Gb Ethernet ASUS LANGuard
Wireless	M.2 slot only (Key E) (Support PCIe interface)* *Wi-Fi module is sold separately.
Âm Thanh	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Hỗ trợ : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Hỗ trợ up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB	Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C^®) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Các tính năng của phần mềm	[ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
Tính năng đặc biệt	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector
Cổng kết nối ( I/O Phía sau)	1 x Intel® I219-V 1Gb Ethernet 1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®) 6 x USB 3.2 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s)
Cổng kết nối ( I/O bên trong)	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel connector
Phụ kiện	User's manual 4 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 xM.2 Key E screw package(s) 1 x M.2 Rubber Package(s)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Ghi chú	1 The PCIEX16_2 shares bandwidth with the PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3 will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is occupied. 2 The PCIEX1_1 and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth with M.2 slot (Key E). *3 When M.2_1 is operating in SATA mode, SATA6G_1 will be disabled.
