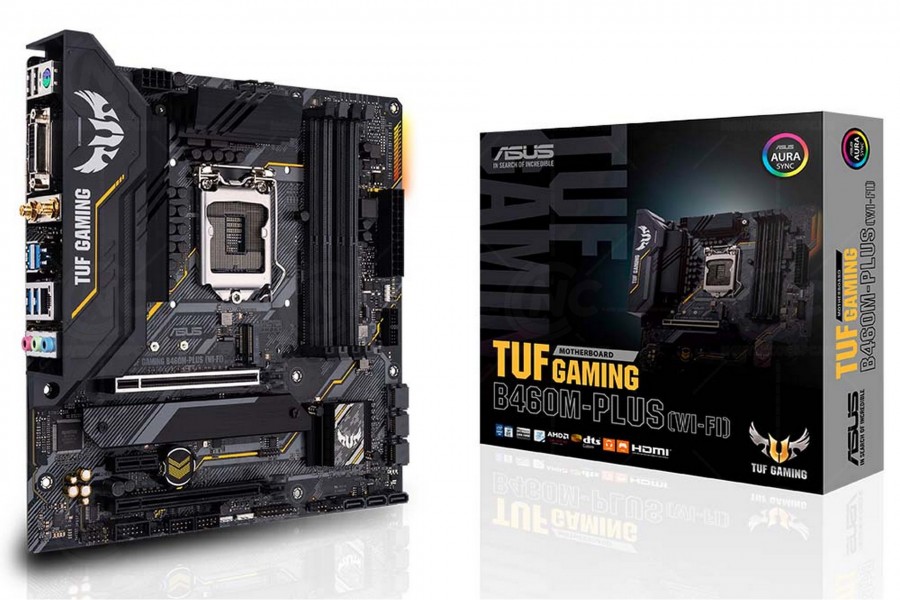

Mainboard ASUS TUF GAMING B460M-PLUS (WI-FI)

Tính năng
Bình luận

THÔNG SỐ KỸ THUẬT

Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	ASUS
Model	TUF GAMING B460M-PLUS WIFI
CPU hỗ trợ	Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® B460
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Đồ họa	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b 1 x DVI-D Graphics specifications may vary between CPU types. *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Hỗ trợ Multi-GPU	Supports AMD 2-Way CrossFireX Technology
Khe cắm mở rộng	Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)¹ 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready ²
LAN	Intel® I219-V 1Gb Ethernet
Wireless	Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface
Bluetooth	Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Âm Thanh	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Các tính năng của phần mềm	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Tính năng đặc biệt	ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink - Aluminum heatsink design AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s)
Cổng kết nối ( I/O Phía sau)	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) 1 x ASUS Wi-Fi Module
Cổng kết nối ( I/O bên trong)	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
Phụ kiện	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x Wi-Fi moving antenna 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Kích cỡ	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Ghi chú	1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. 2 Only the M.2_2 socket can support Intel® Optane™ Memory Ready.
