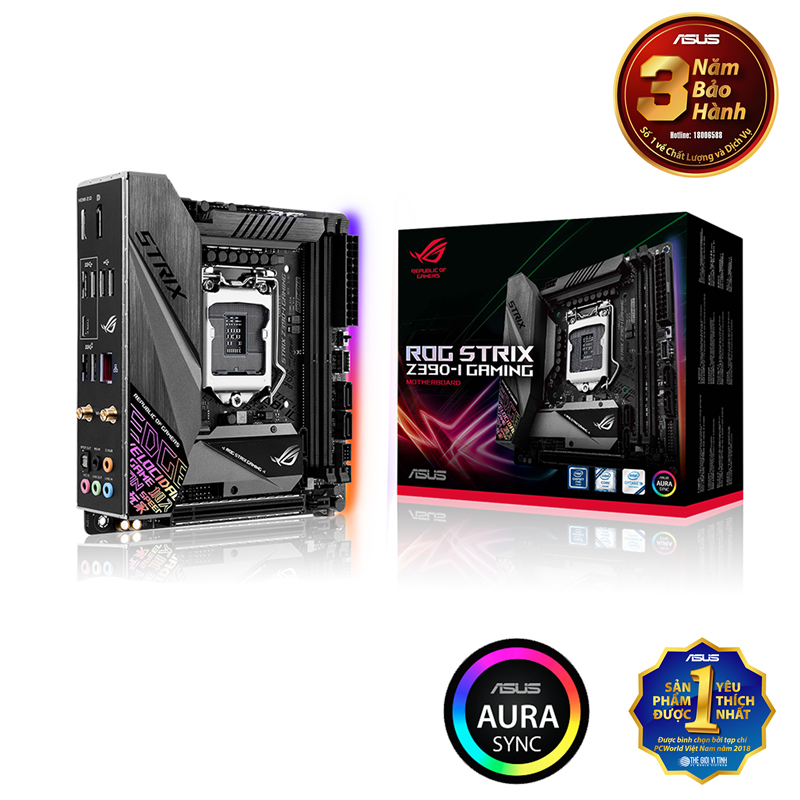

Mainboard Asus ROG STRIX Z390-I GAMING

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

ROG STRIX Z390-I GAMING

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4

4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/

3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCIe 3.0 x16 (x16 mode)

Ổ cứng hỗ trợ

2 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

Cổng kết nối (Internal)

1 x Aura Addressable Strip Header(s)
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Internal speaker connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x USB 3.1 Gen 2 front panel connector

Cổng kết nối (Back Panel)

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A,
1 x USB 3.1 Gen 1 (black) Type-C,
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)

LAN / Wireless

Intel® I219V

Intel® Wireless-AC 9560

Kích cỡ

Mini ITX Form Factor

6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Bo mạch chủ

Tên Hãng

Asus

Model

ROG STRIX Z390-E GAMING

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

4 x DIMM, Max. 64GB, DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/

3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

3 x PCIe 3.0/2.0 x1

Ổ cứng hỗ trợ

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

Cổng kết nối (Internal)

1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x AIO PUMP Header
1 x USB 3.1 Gen 2 front panel connector

Cổng kết nối (Back Panel)

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-C^TM)
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module

LAN / Wireless

Intel® I219V

Intel® Wireless-AC 9560

Kích cỡ

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
