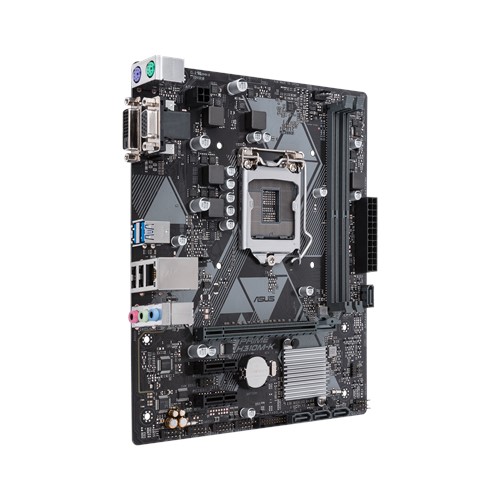

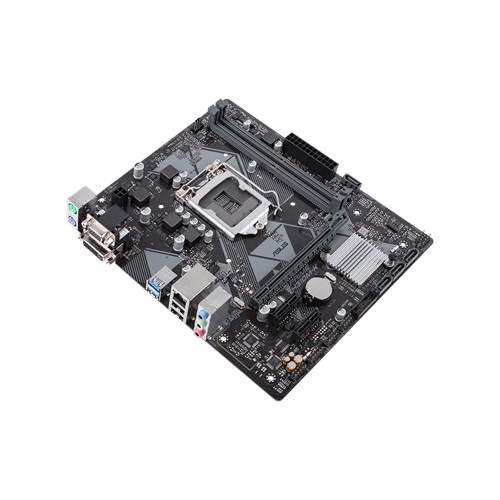

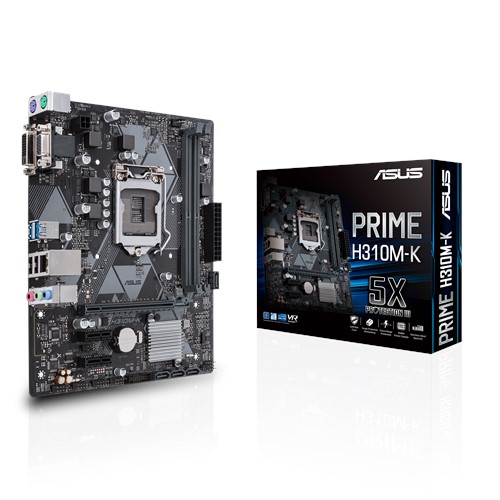

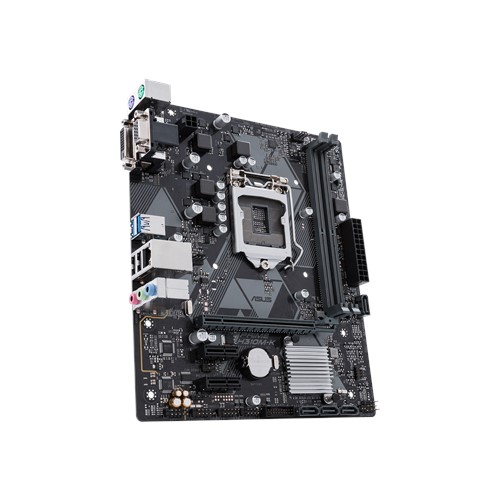

Mainboard Asus H310M-K

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	H310M-K
CPU hỗ trợ	Intel
Chipset	H310
RAM hỗ trợ	2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz
Khe cắm mở rộng	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
Ổ cứng hỗ trợ	4 x SATA 6Gb/s port(s), gray,
Cổng kết nối (Phía trong)	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
Cổng kết nối (Phía sau)	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps 2 x USB 2.0 3 x Audio jack(s)
LAN / Wireless	Realtek® RTL8111H, 1 x Gigabit LAN
Kích cỡ	Micro ATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
