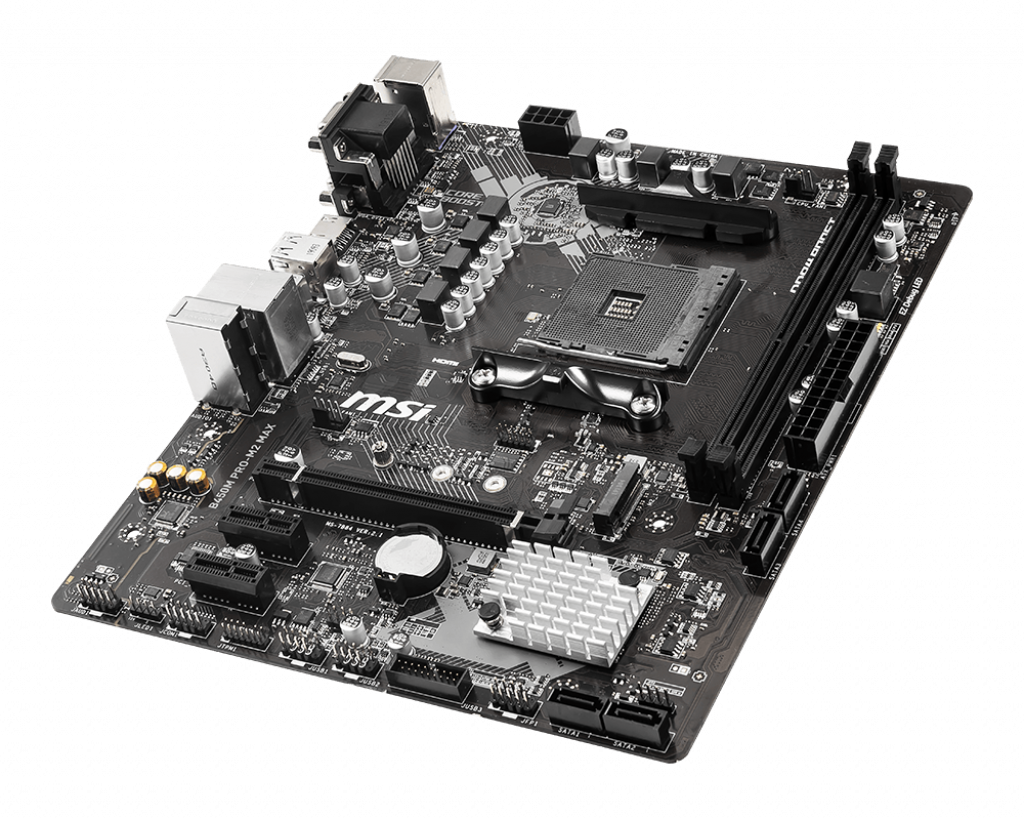

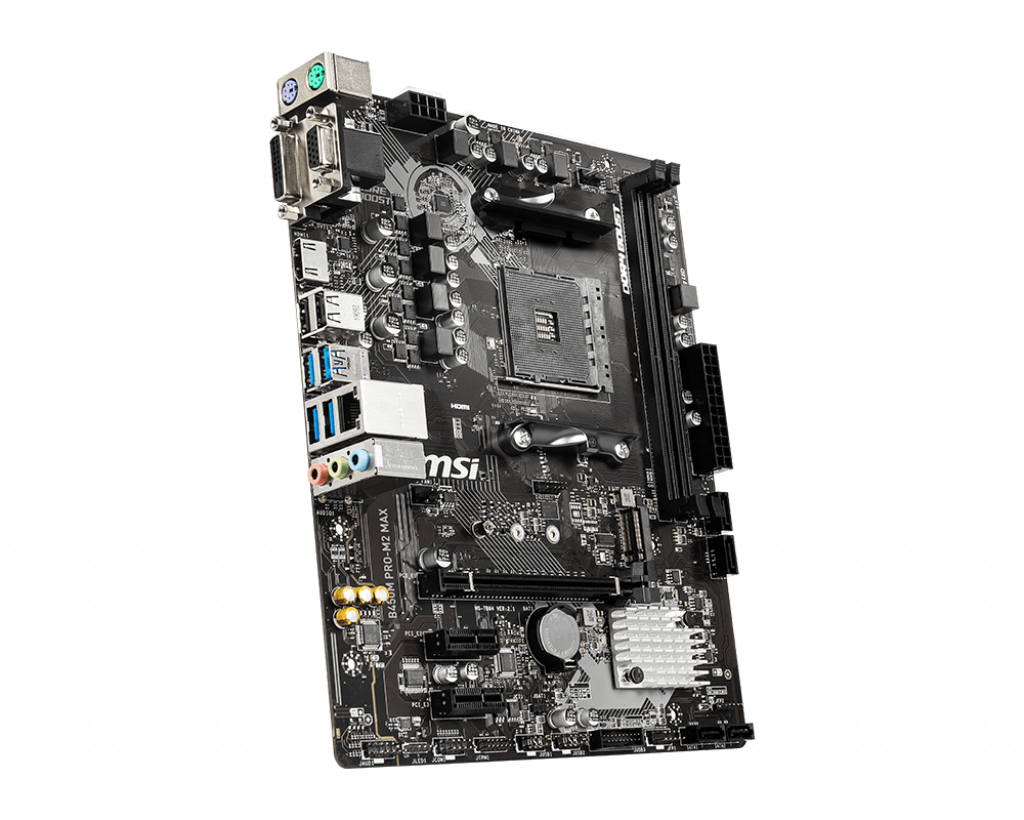

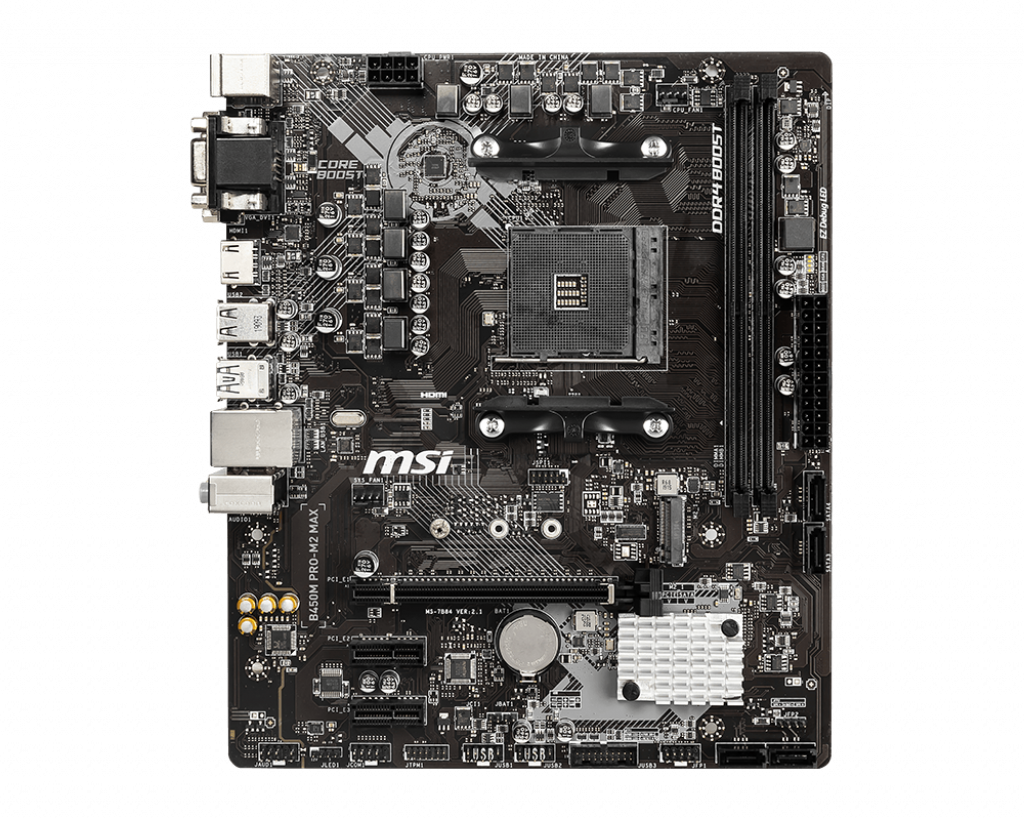

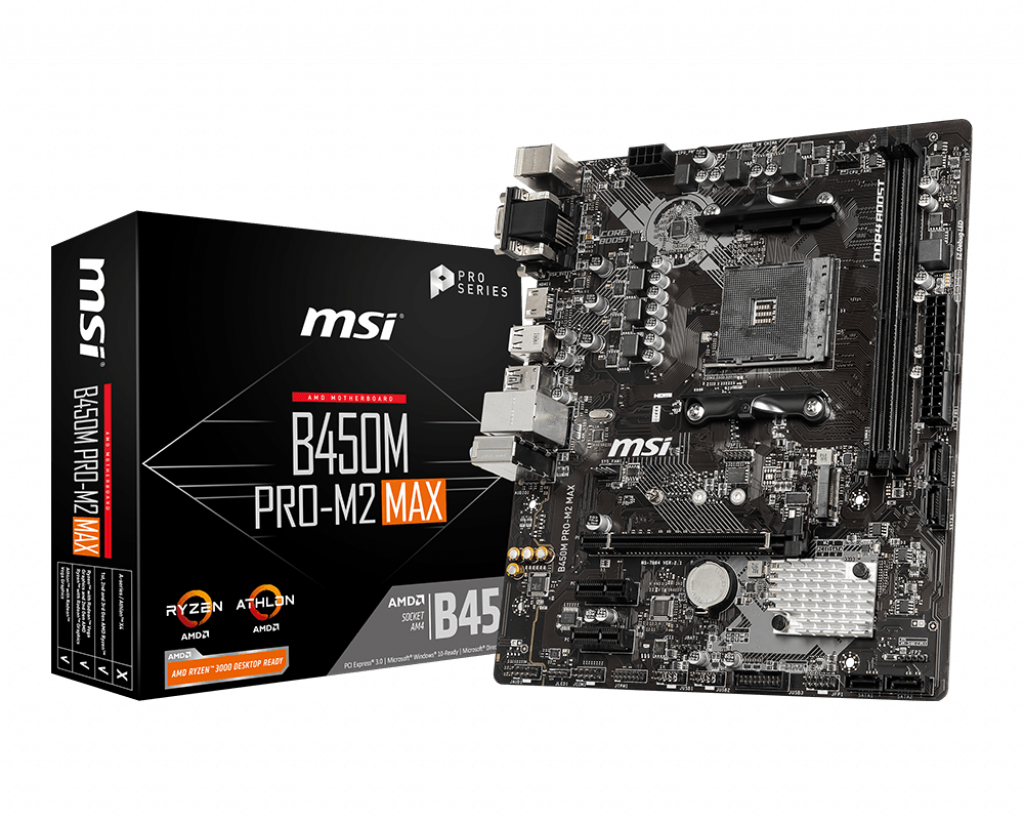

Mainboard AMD MSI B450M PRO-M2 MAX

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	B450M PRO-M2 MAX
CPU hỗ trợ	AMD
Chipset	B450
RAM hỗ trợ	2 x DDR4 memory slots, support up to 32GB
Khe cắm mở rộng	1 x PCIe 3.0 x16 slot (PCI_E1), 2 x PCIe 2.0 x1 slots
Ổ cứng hỗ trợ	4 x SATA 6Gb/s ports, 1 x M.2 slot (Key M)
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED strip connector 1 x Clear CMOS jumper

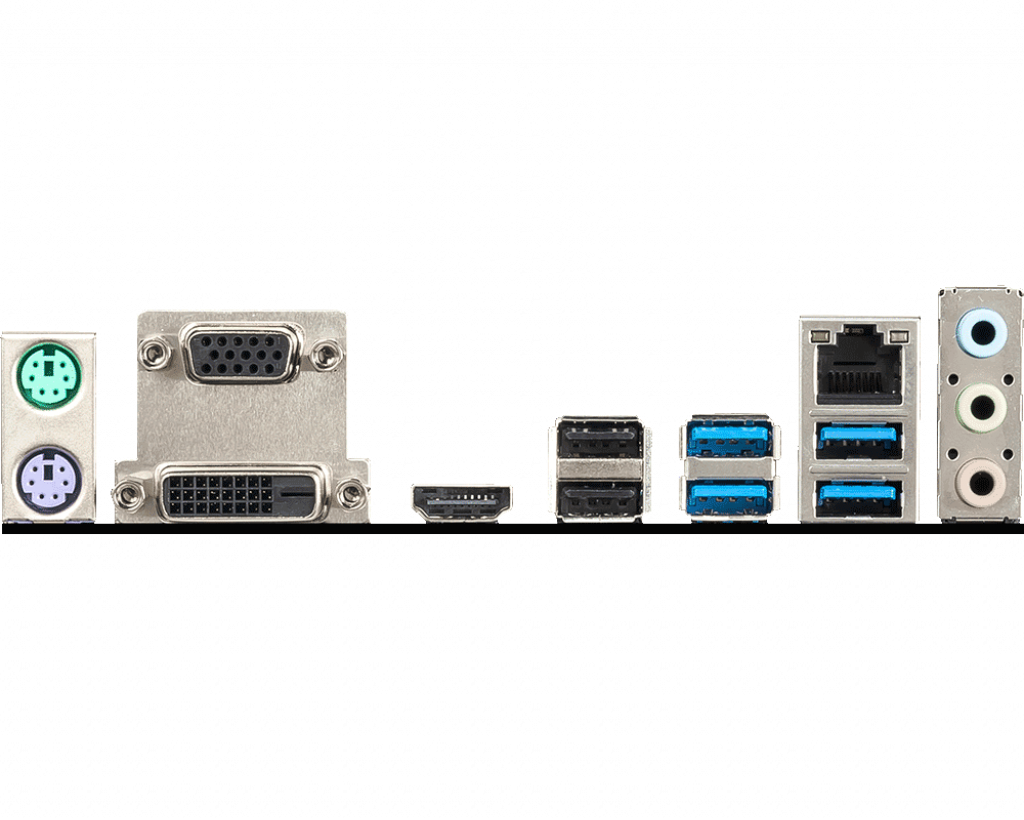

Cổng kết nối (Back Panel)	Mouse VGA Port USB 2.0 LAN Port HD Audio Connectors Keyboard DVI-D Port HDMI Port USB 3.2 Gen1
LAN / Wireless	1 x Realtek^® 8111H Gigabit LAN controller
Kích cỡ	9.6 in. x 8.1 in. (24.4 cm x 20.6 cm) m-ATX Form Fact
