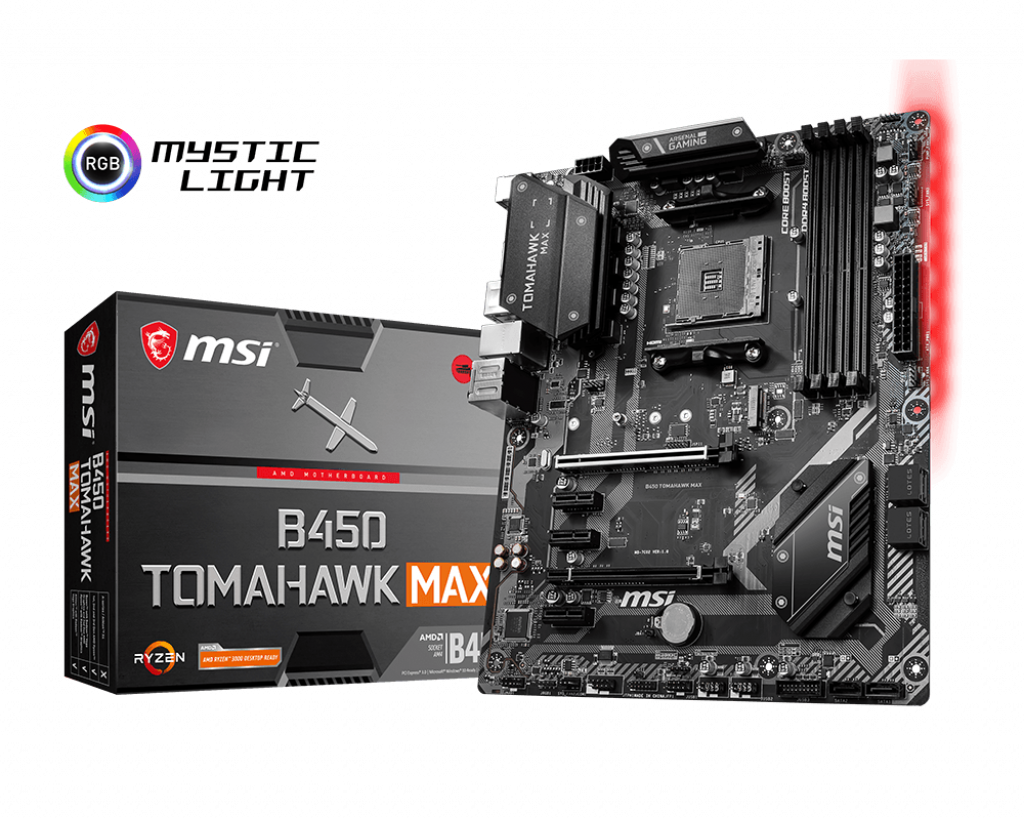

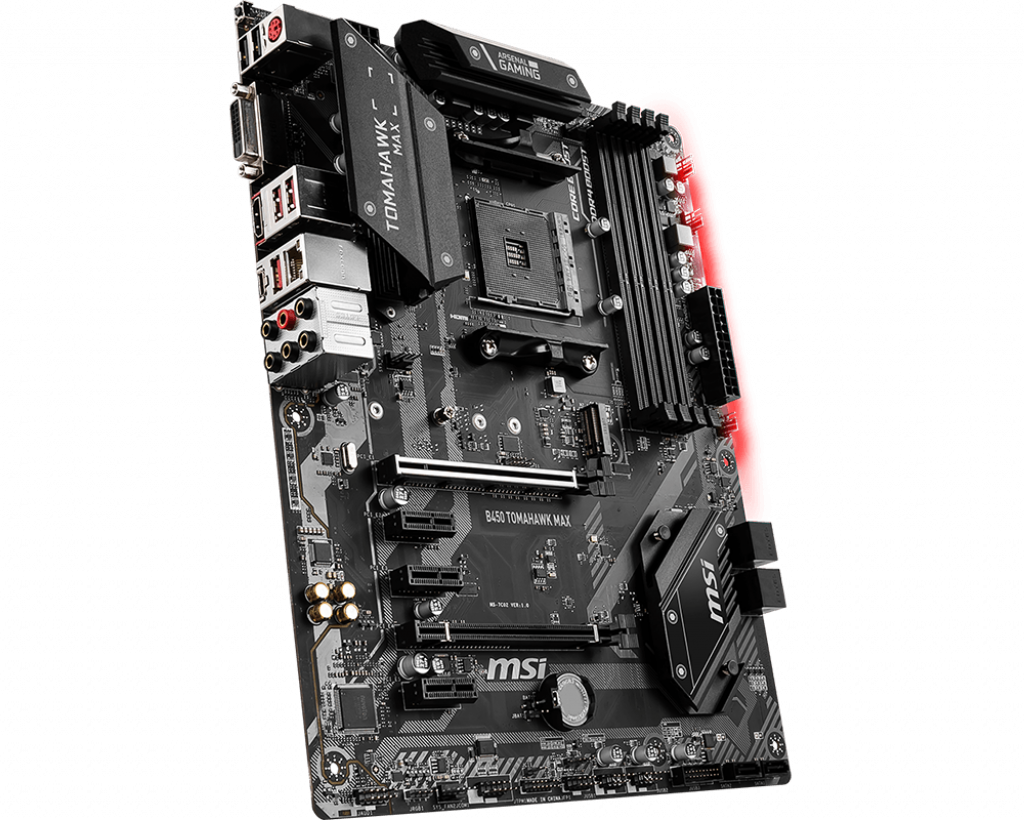

Mainboard AMD MSI B450 TOMAHAWK MAX

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	B450 TOMAHAWK MAX
CPU hỗ trợ	AMD
Chipset	B450
RAM hỗ trợ	4 x DDR4 memory slots, support up to 64GB DDR4
Khe cắm mở rộng	1 x PCIe 3.0 x16 slot (PCI_E1)
Ổ cứng hỗ trợ	2 x SATA 6Gb/s ports¹ 1 x M.2 slot (Key M
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors

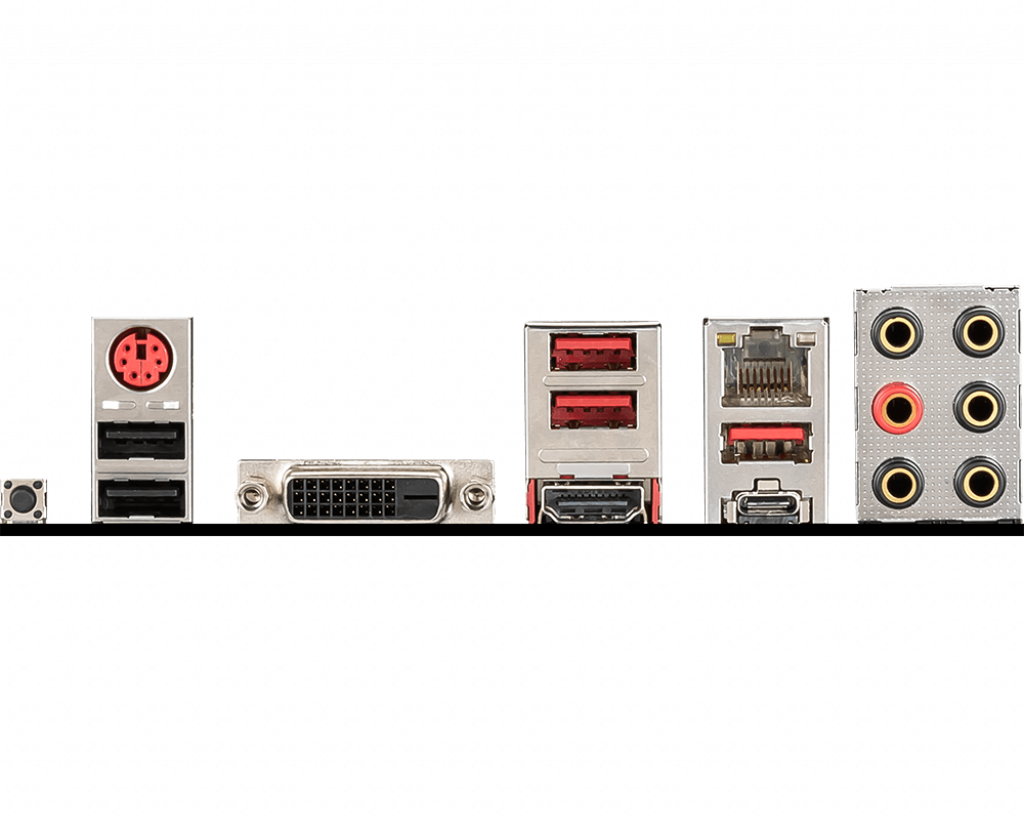

Cổng kết nối (Back Panel)	Flash BIOS Button PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.2 Gen2 Type A+C
LAN / Wireless	1 x Realtek^® 8111H Gigabit LAN controller
Kích cỡ	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
