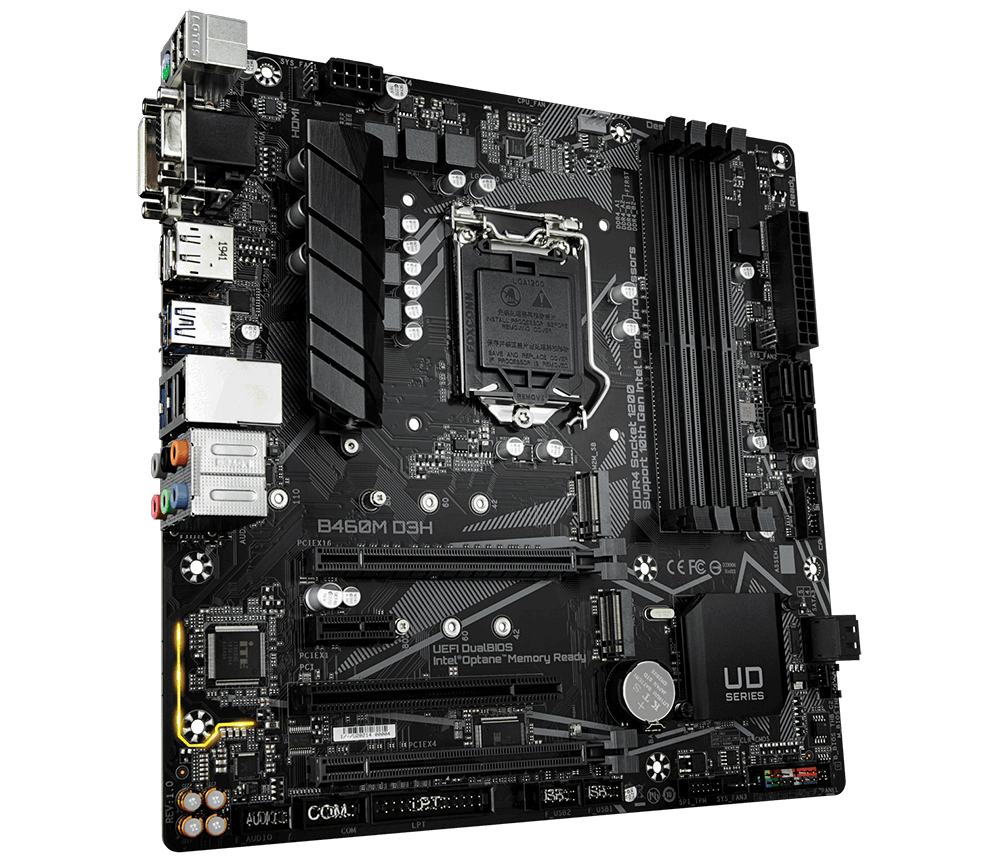

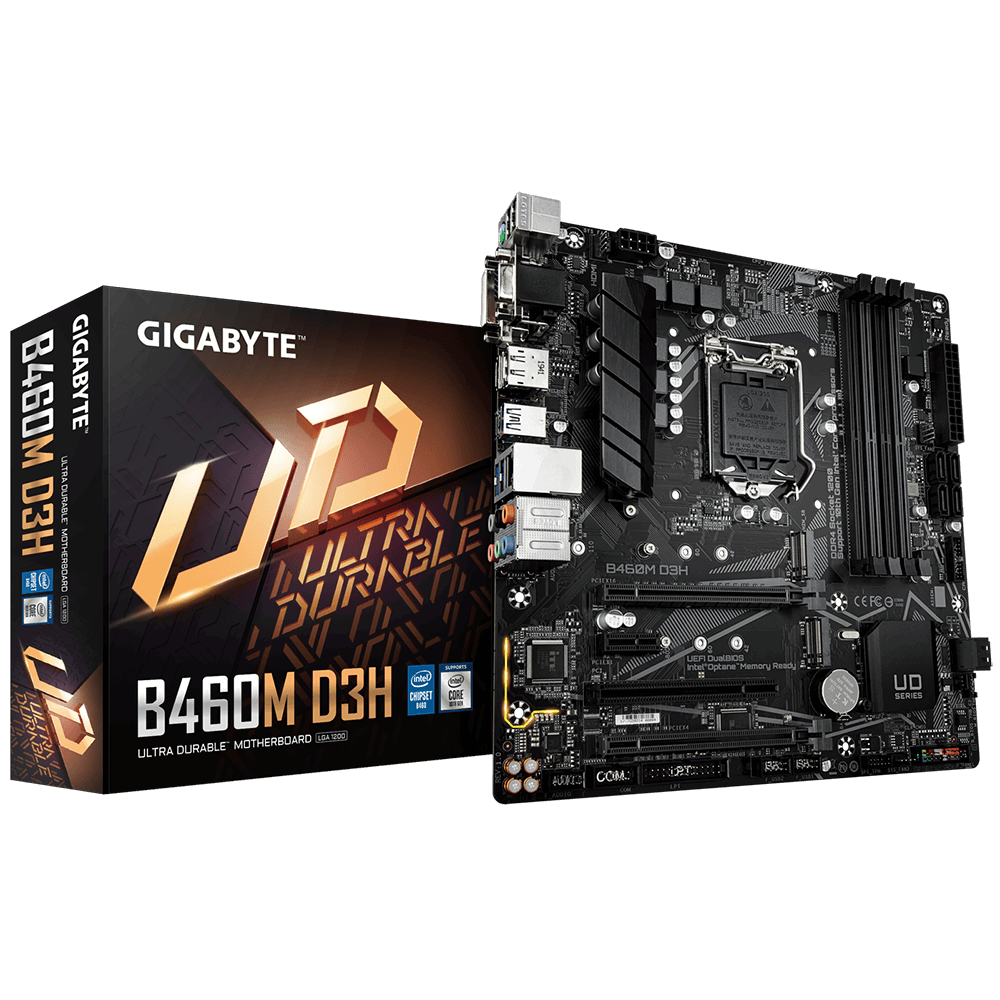

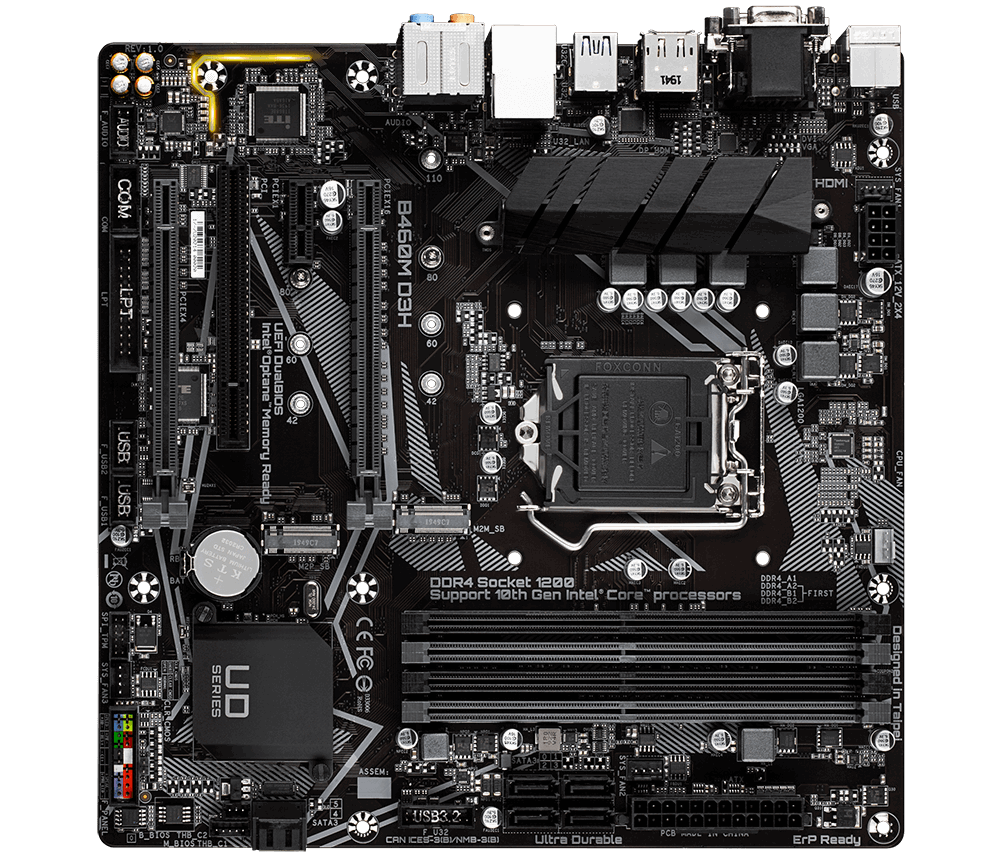

Main Gigabyte B460M-D3H (Chipset Intel B460/ Socket LGA1200/ VGA onboard)

Giá bán: 2.650.000 ₫

Thông tin sản phẩm

- Bảo hành: 36

Mô tả sản phẩm

- Chipset: Intel B460 - Socket: LGA1200 - Hỗ trợ CPU: Intel® Socket 1200 for 10th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Bộ vi xử lý - Cạc đồ họa: VGA onboard - Kích thước: mATX

Mua ngay Thêm vào giỏ hàng

Tính năng
Bình luận

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	B460M-D3H
Socket	LGA1200
Hỗ trợ CPU	Intel® Socket 1200 for 10th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Bộ vi xử lý
Chipset	Intel B460
Hỗ trợ RAM	Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Cạc đồ họa	VGA onboard
Âm thanh	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel
Cạc mạng	Intel® GbE LAN chip (1 Gbit/100 Mbit)
Khe cắm trong	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

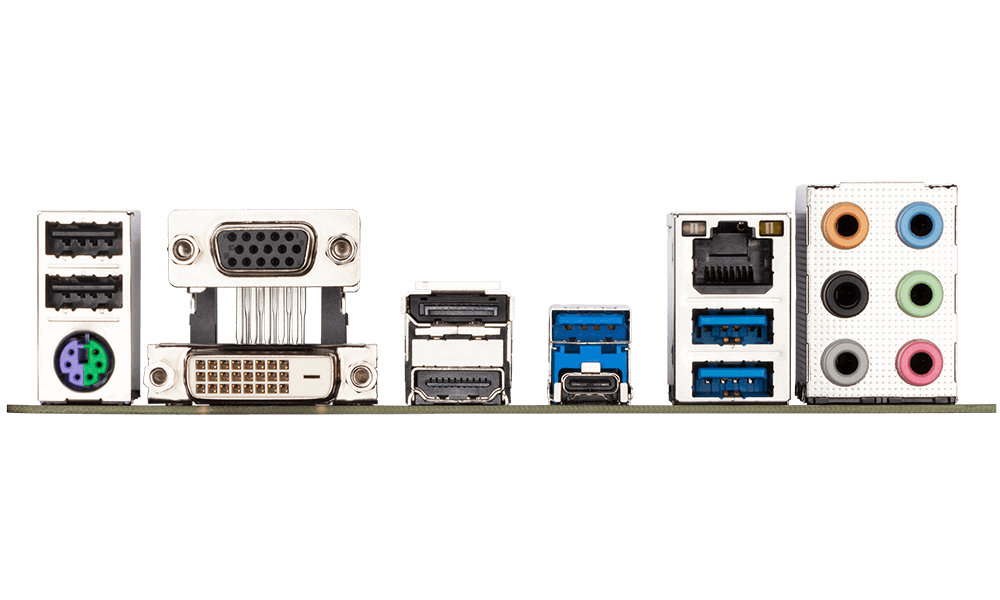

Cổng giao tiếp ngoài	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Kích thước	mATX
Phụ kiện kèm theo	Sách, đĩa, cáp SATA, …
